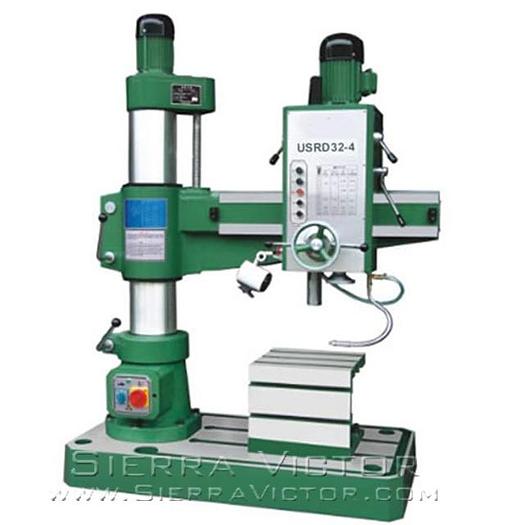

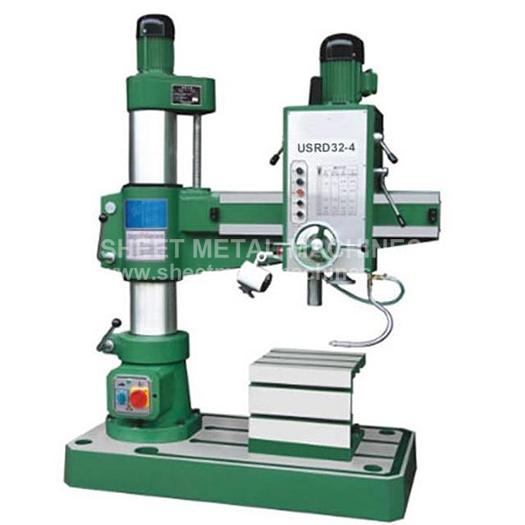

U.S. INDUSTRIAL 32" Radial Arm Drill Press USRD32-4
U.S. INDUSTRIAL 32" Radial Arm Drill Press USRD32-4
$12,990 Call for Freight Specials
Description
Please note: many products ship straight from manufacturer U.S. INDUSTRIAL 32" Radial Arm Drill Press USRD32-4
- Morse Taper 4 Spindle
- Two side box work table, t-slotted
- T-slotted base
- Flood Coolant System
- Power Arm Elevation
- Manual Arm Clamp
- High Precision, Low Noise Ground Gears
- 9.4” + drilling depth
STANDARD ACCESSORIES:
- Box Shape Worktable
- Taper Sleeve
- Tool Releasing Wrench
- Drift
- Eyelit Bolts
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
| Manufacturer | US Industrial |
| Model | USRD32-4 |
| Condition | New |
| Stock Number | USRD32-4 |
| Drilling Capacity | 1.5” |
| Minimum and Maximum spindle to column | 12.6” to 32” |
| Diameter of column | 7.87” |
| Spindle | Morse Taper 4 |
| Spindle Travel | 9.4” |
| Spindle speeds (6 speed gear driven) | 75 to 1,220 RPM |
| Spindle feeds in Inches Per Revolution (3 feeds) | .0039” to .010” |
| Minimum and Maximum distance spindle to base | 4.72” to 33.85” |
| Box Table dimensions | 15.75” x 15.75” x 13.75” |
| Base dimensions | 53.9” x 27.5” x 6.3” |
| Overall dimensions | 55.4” x 28.3” x 74.2” |
| Main spindle drive | 2 HP (208-240 OR 440-480 Volts, 3 phase) |
| Gross Weight | 3,135 lbs. (Net Weight: 2,640 lbs.) |
