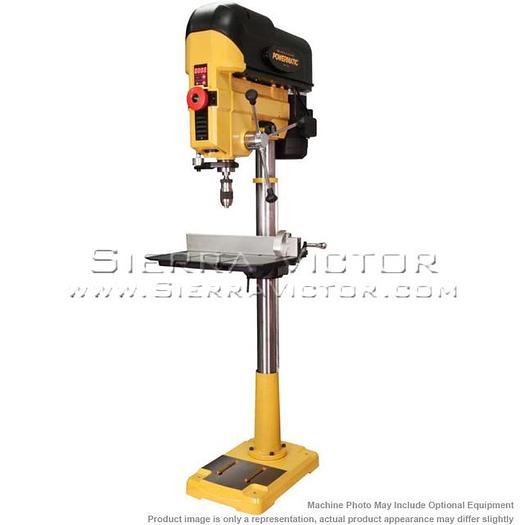

POWERMATIC PM2800B Drill Press, 1HP 1PH 115/230V PM9-1792800B

POWERMATIC PM2800B Drill Press, 1HP 1PH 115/230V PM9-1792800B


orCall 386-304-3720


Please note: many products ship straight from manufacturer POWERMATIC PM2800B 18 inch Variable Speed Drill Press, 1HP 1PH 115/230V, PM9-1792800B At Powermatic, we have a woodworker’s intuition which drives our design process. We look for every opportunity to raise the workshop experience to new levels of performance and functionality. So when we set out to redefine what it means to use a Powermatic Drill Press, we wanted it to be as easy, and as intuitive as possible; to allow you to focus your creative energy on the tasks that make woodworking so rewarding. The PM2800B is the culmination of our efforts. The PM2800B brings simplicity to your shop. An ease of use that is truly unique. A level of mechanical elegance that you’ll only find in a Powermatic. As with every product Powermatic builds, the PM2800B pushes the limits of design, innovation, and durability.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 5 YEAR (for Private Use) / 2 YEAR (for Commercial Use)


Stock NumberPM9-1792800B
Style (Type)246
Spindle Travel6"
Number of Spindle SpeedsVariable
Spindle TaperMT-2/JT-3
Spindle Speed (RPM)250-3000
Spindle Distance to Table (Max.)27-3/8"
Spindle Distance to Base46-1/4"
Table Size (L x W)20" x 14"
Table Tilt0° to 90°
Fence Size (L x H)19-13/16" x 2-11/16"
Chuck Distance to Base43-13/32"
Chuck Distance to Table24-1/2"
Chuck Size5/8"
Column Diameter3-1/8"
Base Size13-3/8" x 20"
Motor Power1 HP
Motor Phase1
Motor Voltage115/230V
Prewired Voltage115V
Motor Current (Amps)15 / 7.5
