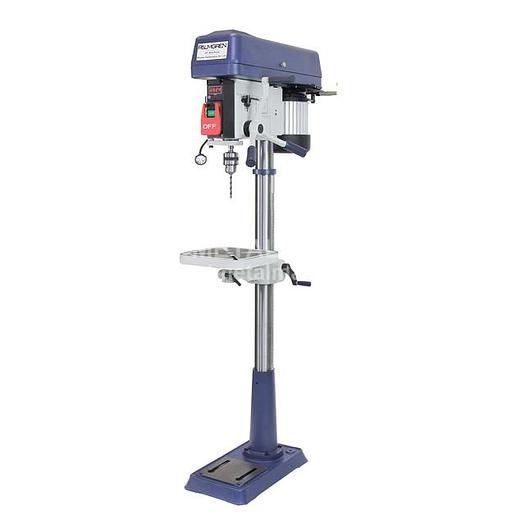

PALMGREN 16-Speed Floor Step Pulley Drill Press 9680158

PALMGREN 16-Speed Floor Step Pulley Drill Press 9680158


orCall 386-304-3720


Please note: many products ship straight from manufacturer PALMGREN 15" 16-Speed Floor Step Pulley Drill Press 9680158 Palmgren’s heavy duty 16-speed drill presses are designed and built for drilling a wide array of materials. They have the weight and rigidity to maintain the built-in tight tolerances required for metalworking applications. The oversized, massive drill heads have widely spaced bearing surfaces that provide full quill support throughout its travel. A wider range of operation speeds for drilling both large and small holes. Fully enclosed spindle for accurate drilling operations Maximum spindle run out of 0.0005" Extended quill/spindle travel ideal for deep hole applications LED readout of spindle speed and quill travel Rack and pinion table raiser Precision ground t-slotted work table with coolant trough Table tilts 45° right and left and rotates 360° around the column Quick change vertical depth stop for accurate, repeatable feed length Heavy cast metal 3 spoke quill feed handle with ergonomic speed feed handle Front mounted industrial paddle-type power switch Includes chuck with key and arbor


Stock Number9680158
Capacity Cast Iron5/8"
Spindle TaperMT2
Spindle Travel5"
Spindle to Table15-1/2"
Table Work Surface11-1/2" x 11-1/2"
Table Slots5/8"
Spindle Speeds16
Motor HP1/2 HP
Amps7.3/3.7 A
