PALMGREN Shop Tap Pneumatic Tapping Machine 9680401

PALMGREN Shop Tap Pneumatic Tapping Machine 9680401


orCall 386-304-3720

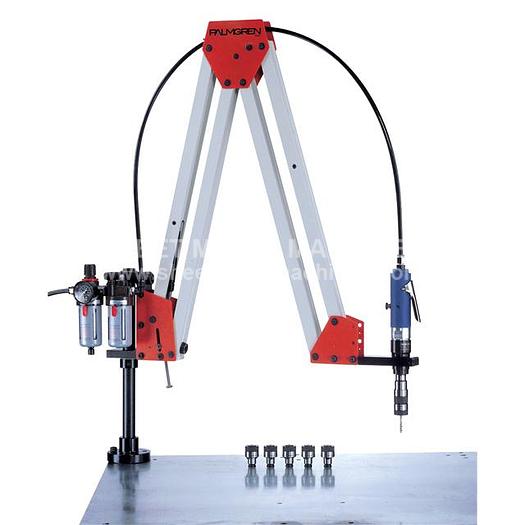

Please note: many products ship straight from manufacturer PALMGREN 700 RPM Shop Tap Pneumatic Tapping Machine 9680401 Palmgren’s Shop Tap pneumatic tapping machine is a medium duty general purpose machine suitable for tapping small to medium size holes. The arm is equipped with lubricated for life bearings at all swivel points, provides weightless operation through the use of gas counter balance springs and permits the operator to bring the tap to the hole with ease.

STANDARD EQUIPMENT: Parallel arm reach 62˝ max. / 22.5˝ min. Stationary bench bracket Quick change tooling adaptor Air preparation unit with lubricator, filter, regulator and pressure gauge Vertical motor bracket High torque reversible air motor


Stock Number9680401
Motor RPM700
Torque @ 90 PSI (ft/lb.)16
Air Consumption (CFM)24
Max. Tap Capacity/Mild Steel3/8"
Max. Tap Capacity/Aluminum1/2"
Quick Change Tooling Size1
Weight40 lbs.
