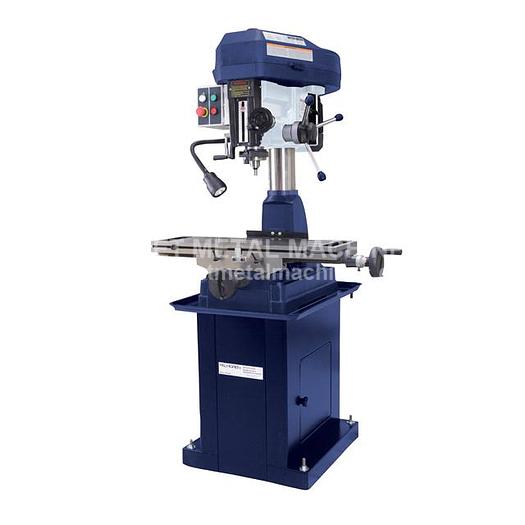

PALMGREN Mill Drill Machine 9680161
PALMGREN Mill Drill Machine 9680161
$3,262
Description
Please note: many products ship straight from manufacturer PALMGREN Mill Drill Machine 9680161 Our Mill / Drill machine offers maximum versatility and economy for your end milling, face milling, slotting, drilling and boring applications all in a single machine designed to bring a competitive advantage to the smaller job shop, model shop, fabrication shop and maintenance departments. STANDARD EQUIPMENT: Solid cast iron construction Large, precision ground T-slotted machine table with adjustable feed stops Hinged belt cover for faster speed changes Heavy-duty tapered roller bearings support the spindle Positive easy to read internal depth stop Fine feed mechanism with graduated dial for accurate down feed movement Easy to read dials 360° head swivel Comes standard with draw bar, work light, R8/J6 arbor, face mill cutter, R8/MT3 arbor, drill chuck and key and 6 piece R8 arbor set (1/8˝, 1/4˝, 3/8˝, 1/2˝, 5/8˝ & 3/4˝). ITEM: 32-3/8" x 9-1/2" Mill Drill Machine MANUFACTURER: PALMGREN PART# 9680161
Specifications
| Manufacturer | PALMGREN |
| Model | 9680161 |
| Condition | New |
| Stock Number | 9680161 |
| Drilling Capacity in Cast Iron (max.) | 1-1/2" |
| Drilling Capacity in Steel (max.) | 1-1/4" |
| Milling Capacity Cutter Head (max.) | 3" |
| Milling Capacity End Mill Cutter (max.) | 3/4" |
| Column Diameter | 4-1/2" |
| Working Range | 80" x 100" x 65" |
| Quill Travel | 5" |
| Quill Diameter | 3" |
| Quill Collar Diameter | 3-3/4" |
| Draw Bar Thread | 7/16" - 20 drawbar |
| Head Travel | 12" |
| Maximum Spindle To Table | 17" |
| Speed Range | 150 - 3000 RPM |
| X-Axis | 23" |
| Y-Axis | 7" |
| T-Slot Size / Distance/ Quantity | 5/8 in / 2.09 in / 4 |
| Width | 30" |
| Height | 43" |
| Net Weight | 600 lbs. |
