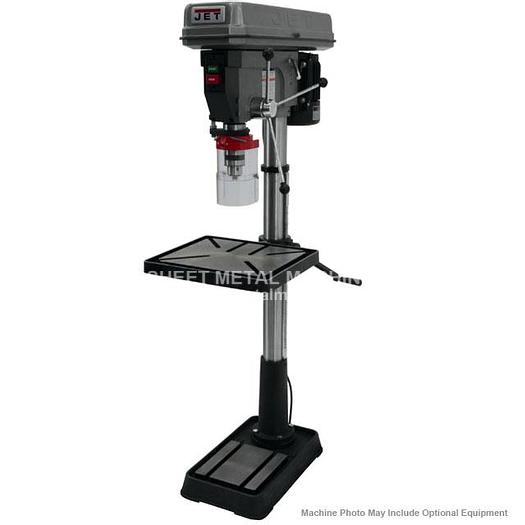

JET JDP-20MF Floor Drill Press 115/230V 1Ph 354170

JET JDP-20MF Floor Drill Press 115/230V 1Ph 354170


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET JDP-20MF, 20" Floor Drill Press 115/230V 1Ph, 354170 Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty. Hinged metal belt and pulley cover Quick adjustment motor mount for rapid changing of spindle speeds Rotating, 45° tilting, crank operated worktable with release clamp On/off switch located on front of drill press head 1/2" diameter external depth stop with three nut locking feature for quick adjustment Adjustable tension spindle return spring Spindle is supported by high quality bearings Drill chuck and key included Telescoping safety spindle guard


Stock Number354170
Drills to Center of Circle (in.)20
Drilling Capacity Cast Iron(in.)1
Drilling Capacity Mild Steel (in.)3/4
Distance Column to Spindle (In.)10
Number of Spindle Speeds12
Range of Spindle Speeds (RPM)150 - 4,200
Column Diameter (In.)3-3/8
Spindle Taper (In. x TPI)MT-3
Spindle Travel (In.)4-5/8
Spindle Distance to Base (In.)46-3/4
Spindle Distance to Table (Max.) (In.)29-1/8
Table Travel (In.)21-1/2
T-Slots Number and Size (In.)6 and 1/2
T-Slot Centers (In.)3-1/2
Table Size (L x W) (In.)18-1/2 x 16
Work Table Weight Capacity (Lbs.)80
Base Dimensions (In.)13-3/4 x 22-3/4
Base Work Table (In.)13 x 8-1/2
Base Slots Number & Size (In.)2 and 5/8
Motor1-1/2HP, 1Ph , 115/230V, Prewired 115V
Overall Dimensions (in.)31-1/2 x 18-1/2 x 66
Net Weight (lb.)282
