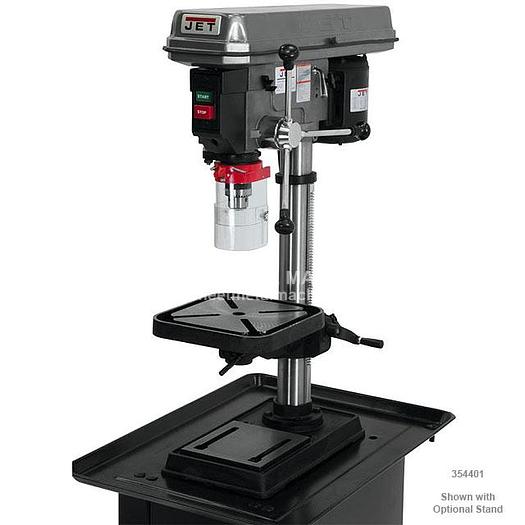

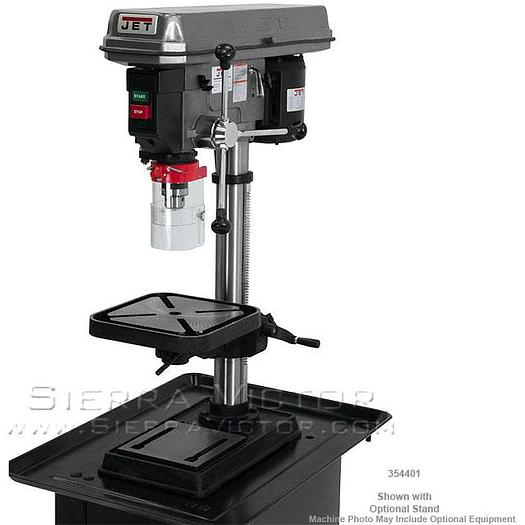

JET J-2530 Bench Model Drill Press 115V 1Ph 354401

JET J-2530 Bench Model Drill Press 115V 1Ph 354401

$699

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET J-2530, 15" Bench Model Drill Press 115V 1Ph, 354401 Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty. ITEM: 15" JET Step Pulley Drill Press MANUFACTURER: JET MODEL: J-2530 PART# 354401

Specifications

ManufacturerJet
ModelJ-2530
ConditionNew
Stock Number354401
Part #354401
Type15" Bench
Drills to Center of Circle (in)15
Drilling Capacity Cast Iron (in.)5/8
Drilling Capacity Mild Steel (in.)1/2
Quill Diameter (in.)1-7/8
Quill Travel (in.)3-3/8
Spindle TaperMT-2
Number of Spindle speeds12
Range of Spindle Speeds (RPM)200, 290, 350, 430, 500, 580, 640, 720, 800, 870, 1440, 1630, 1820, 2380, 2540, 3630
Overall Table Size (in.)11-1/2 x 11-1/2
Column Diameter (in.)2-7/8
Base Size (in.)18 x 10-1/2
Spindle to Base (in.)24
Motor3/4 HP, 115V, 1 Ph
Overall Dimensions (in.)31 x 13 x 39-1/2
Weight (lbs.)147
