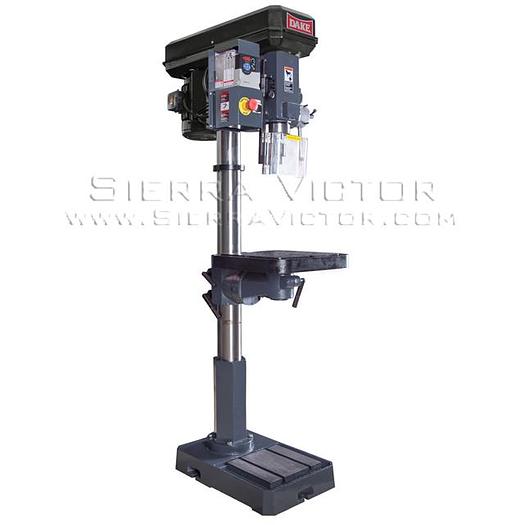

DAKE Variable Speed Floor Drill Press SB-250V

DAKE Variable Speed Floor Drill Press SB-250V
$4,199
Description
Please note: many products ship straight from manufacturer DAKE Variable Speed Floor Drill Press SB-250V ITEM: Variable Speed Floor Drill Press PART# 977701V Variable speed floor model drill press that automatically advances to preset depth, bottoms out, and returns automatically. Comes with forward and reverse selector switch for tapping applications, and a locking handle hub for repeatable depth. CE safety electrical package, a large diameter sturdy spindle, and a massive cast head make this one touch drill press. A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes. Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation. Machined table and base surfaces with t-slots for mounting and fixturing. Forward and reverse selector switch for tapping applications. CE safety electrical package features push button on/off switch, emergency stop button, low voltage controls, thermal overload, and interlock safety switch for belt cover. Massive cast head, machined column, and sturdy cast base reduces vibration. Latest frequency inverter technology for easy speed changes and concentrated torque. Handle has 3 spokes with spring return for precise operator control and ergonomic operation. Automatically advances to preset depth, bottoms out, and returns automatically
STANDARD EQUIPMENT: Keyed 5/8” chuck Drift (for bit removal) Plexiglas chip & chuck guard
Specifications
Manufacturer | Dake |
Model | SB-250V |
Condition | New |
Stock Number | 977701V |
Drill Capacity | 1" |
Motor | 1.5 HP |
Spindle Taper | MT3 |
Working Diameter | 18" |
Spindle Speeds | Variable Speed |
Spindle Speed Range | 68-1380 RPM |
Spindle Feed | Manual |
Electrics | 110V, Single phase |
Spindle Travel | 5" |
Column Diameter | 3-5/8" |
Table Depth | 13-3/4" |
Table Width | 13-3/4" |
Base Depth | 23-5/8" |
Base Width | 15" |
Spindle to Table | 28-3/8" |
Spindle to Base | 49-1/4" |
Overall Height | 71" |
Weight | 483 lbs. |
