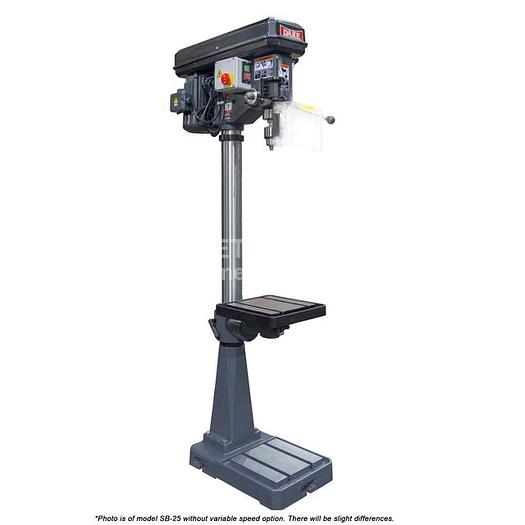

DAKE Variable Speed Floor Drill Press SB-25V

DAKE Variable Speed Floor Drill Press SB-25V

$3,080

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer DAKE Variable Speed Floor Drill Press SB-25V ITEM: Variable Speed Floor Drill Press MANUFACTURER: DAKE MODEL: SB-25V PART# 77600-1V Modern design with the operator in mind. Available in manual and semi-automatic spindle feed models. Just twist the knob on the frequency inverter to adjust the speed while drilling using the LED indicator for speed readout. Forward and reverse selector switch for tapping applications. For speed range changes use the quick belt tension release feature. Floor models feature a locking handle hub for repeatable depth, CE safety electrical package, a large diameter sturdy spindle, and a massive cast head. A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changes. Large diameter sturdy spindle for rigid drilling has four bearing points for smooth operation. Bench and floor models both have machined table and base surfaces with t-slots for mounting and fixturing. All floor model variable speed models feature a forward and reverse selector switch for tapping applications. Model SB-250V automatically advances to preset depth, bottoms out, and returns automatically. CE safety electrical package features push button on/off switch, emergency stop button, low voltage controls, thermal overload, and interlock safety switch for belt cover. Massive cast head, machined column, and sturdy cast base reduces vibration. Latest frequency inverter technology for easy speed changes and concentrated torque. Handle has 3 spokes with spring return for precise operator control and ergonomic operation.

STANDARD EQUIPMENT: Keyed 5/8” chuck Drift (for bit removal) Plexiglas chip & chuck guard

Specifications

ManufacturerDake
ModelSB-25V
ConditionNew
Stock Number77600-1V
Drill Capacity1"
Motor2 HP
Spindle TaperMT3
Working Diameter18"
Spindle SpeedsVariable Speed
Spindle Speed Range46 - 3550
Spindle FeedManual
Electrics120V, 1 PH
Spindle Travel5"
Column Diameter3-5/8"
Table Depth13-3/4"
Table Width13-3/4"
Base Depth23-5/8"
Base Width15"
Spindle to Table28-3/8"
Spindle to Base49-1/4"
Overall Height71"
Weight397 lbs.
