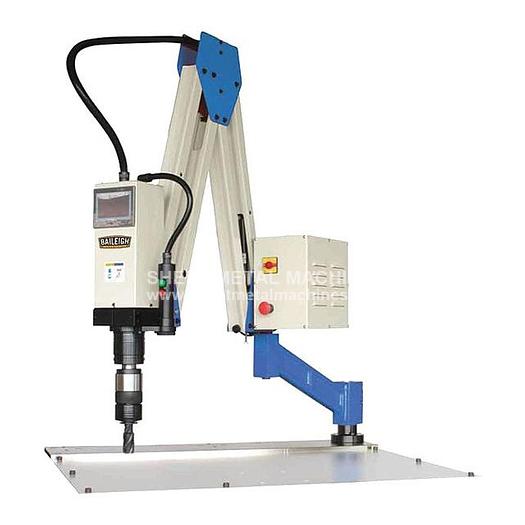

BAILEIGH Electronically Controlled Tapping Arm EATM-32-1900

BAILEIGH Electronically Controlled Tapping Arm EATM-32-1900

$11,566 Call for Availability

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer BAILEIGH Electronically Controlled Tapping Arm EATM-32-1900 The EATM-32-1900 electronic tapping arm was designed to help employees finish their work faster and more accurately by adding and automatic depth control. This control ensures that the job is done right the first time, every time. It has a double articulating are that features a set of twin parallel arms, made of heavy gauge aluminum tubing that are effective at neutralizing vibration and torque reaction. They also allow the arm to reach to 74” from the base. The spindle of the EATM-32-1900 has a variable speed range of 0 to 300 rpm from its 1hp motor. This powerful spindle will accommodate a 1-1/4” tap. . Also included are 6 sets of tap holders in various sizes. Ask about the optional heavy duty work cart that allows the EATM-32-1900 tapping arm to be mobile, especially handy in those smaller shops. Electric tapping spindle Auto depth control 0 to 300 rpm Work range 7.8" to 74" Dual stretch arms Slanted arm for increased reach Table mount system Adjustable spindle mount for ariable degree tapping 1/4", 3/8", 1/2", 3/4" tap holders included Optional work cart available 220V single phase

ITEM: Electronically Controlled Pneumatic Tapping Arm MANUFACTURER: BAILEIGH MODEL: EATM-32-1900

Specifications

ManufacturerBaileigh Industrial
ModelEATM-32-1900
ConditionNew
Stock NumberEATM-32-1900
Tapping Range.11" to 1.25"
Work Range (Maximum)83"
Work Range (Minimum)7.8"
Spindle Speeds0 to 300 rpm
Spindle OperationElectric
Automatic Depth ControlYes
Included Tap Holders1/4", 3/8", 1/2", 3/4", TRE3/2 and TRE2/1 adapter
Voltage220V, single phase
Shipping Weight154 lbs.
