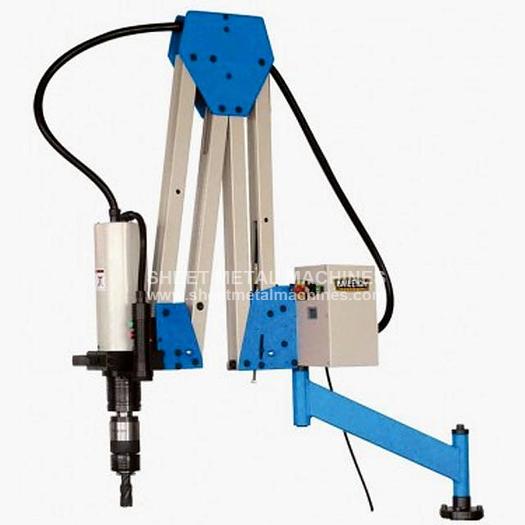

BAILEIGH Electronically Controlled Pneumatic Tapping Arm ETM-32-1500

BAILEIGH Electronically Controlled Pneumatic Tapping Arm ETM-32-1500


orCall 386-304-3720


Please note: many products ship straight from manufacturer BAILEIGH Electronically Controlled Pneumatic Tapping Arm ETM-32-1500 The ETM-32-1500 is an electronically controlled tapping arm that has a maximum tapping capacity of 1-1/4”. This is a self-contained unit that has a variable speed spindle making it perfect for most every job. The ETM-32-1500 has a double articulated pneumatic tapping arm to extend its reach to 59”. The sturdy cast iron swing arm is connected to the base by means of a hardened and ground shaft that incorporates a leveling system. The twin parallel arms are made of heavy gage aluminum tubing that effective sat neutralizing vibration and torque reaction. Tapping arms are very popular for jobs that require employees to do the same process over and over accurately. It also has an ergonomic design, to protect workers from injuries that tend to develop over time during repetitious work. Also included are 6 sets of tap holders in various sizes. To make the ETM-32-1500 even more versatile ask about the optional work cart. Electric tapping spindle 0 to 300 rpm Work range 7.8" to 59" Slanted arm for increased reach Table mount system Adjustable spindle mount for variable degree tapping 1/4", 3/8", 1/2", 3/4", 1", and1-1/8" tap holders included Optional work cart available 220V single phase


ManufacturerBaileigh Industrial
Stock NumberETM-32-1500
Tapping Range.11" to 1.25"
Work Range (Maximum)59"
Work Range (Minimum)7.8"
Spindle Speeds0 to 300 rpm
Spindle OperationElectric
Included Tap Holders1/4", 3/8", 1/2", 3/4", 1" and 1-1/8"
Voltage220V, single phase
Shipping Weight154 lbs.
