BAILEIGH ATM-27-1000 Pneumatic Tapping Arm

BAILEIGH ATM-27-1000 Pneumatic Tapping Arm


orCall 386-304-3720

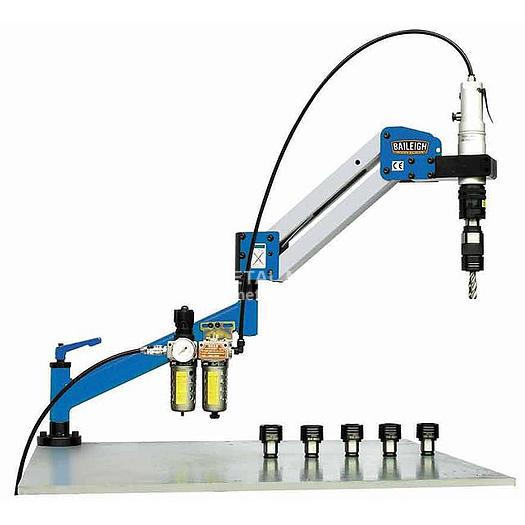

Please note: many products ship straight from manufacturer BAILEIGH ATM-27-1000 Pneumatic Tapping Arm The ATM-27-1000 pneumatic tapping arm from Baileigh industrial is a heavy duty articulating tool support arm designed to provide fingertip control for the most demanding applications. It is versatile and has many uses such as tap, drill, fasten, lift, grind, and polish. The sturdy cast iron swing arm is connected to the base by means of a hardened and ground shaft that incorporates a leveling system. The twin parallel arms are made of heavy gage aluminum tubing that effective sat neutralizing vibration and torque reaction. The included pneumatic motor spins at 220 rpm and includes 6 different tap holders. Another nice feature of the ATM-27-1000 tapping arm is that is has an ergonomic design, this is to protect workers from injuries that tend to develop over time during repetitious work. Use with the optional work cart to make this a mobile unit so that it can be used anywhere in the shop. Air tapping spindle Work range 3.93" to 39.3" Slanted arm Table mount system 1/4", 3/8", 1/2", 5/8", 3/4" and7/8" tap holders included


ManufacturerBaileigh Industrial
Stock NumberATM-27-1000
Tapping Range.11" to 1"
Work Range (Maximum)39.3"
Work Range (Minimum)39.3"
Spindle Speeds220 rpm
Spindle OperationPneumatic
Included Tap Holders1/4", 3/8", 1/2", 5/8", 3/4" and 7/8"
Shipping Weight55 lbs.
