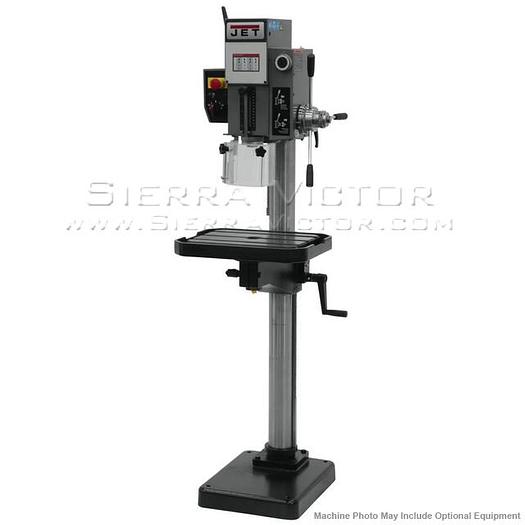

JET J-A2608M-PF2 Arboga Gear Head Drill Press With Power Down feed 220V, 3Ph 354030

JET J-A2608M-PF2 Arboga Gear Head Drill Press With Power Down feed 220V, 3Ph 354030

$6,899

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET J-A2608M-PF2, 20" Arboga Gear Head Drill Press With Power Down feed 220V, 3Ph, 354030 A workhorse of a machine for precision production drilling applications. The head and table rotate 360 degrees around the column for maximum mobility. Eight drilling speeds provide high torque at lower speeds for both small and medium hole drilling. Special helical gears help maintain this drill's smooth, quiet operation. ITEM: 20" Arboga Gear Head Drill Press with Powerfeed MANUFACTURE: JET MODEL: J-A2608M-PF2 PART# 354030

Specifications

ManufacturerJet
ModelJ-A2608M-PF2
ConditionNew
Stock Number354030
Part #354030
Drills to Center of Circle (in.)20
Drilling Capacity Mild Steel (in.)1-1/4
Drilling Capacity Cast Iron (In.)1-3/8
Column Diameter (in.)3-15/16
Spindle Speeds (RPM)Low-130, 260, 420, 840; High-535, 1070, 1745, 3480
Spindle TaperMT-3
Quill FeedPower
Distance Spindle to Table (in.)35-5/8
Quill Travel ( in.)5-1/8
Quill Diameter (in.)2-3/8
Vertical Movement of Drill Head (in.)8-5/8
Table Size (in.)15-3/4 x 19-3/4
T-Slots Number and Size (in.)2 & 9/16
Table Weight Capacity (lb.)350
Vertical Movement of Table (in.)24-1/2
Motor1 to 1-1/2 HP, 220V, 3Ph
Floor Space Required (in.)24 x 22 x 72
Net Weight (lb.)600
