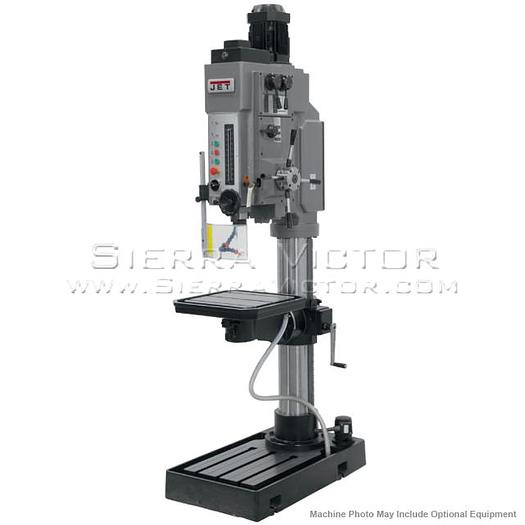

JET J-2360 Direct Drive Drill Press 354051

JET J-2360 Direct Drive Drill Press 354051

$20,599

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET J-2360 Direct Drive Drill Press 354051 Shops must handle a wide variety of customer demands. This heavy-duty JET machine performs a variety of precision drilling applications. An easy-to-ready internal depth gauge prevents waste through errors, and a large production with T-slotted base holds over-sized pieces. Tempered, ground spindle with internal taper mounted in precision bearings for maximum accuracy, minimizing deflection Speed and feed selectors are located on one side of the drill head for convence and ease of operation Oversized base is precision ground with T-slot for added versatility and stability Mechanical powerfeed clutch engagement Two-speed forward and reverse switch Does NOT perform Tapping function EQUIPPED WITH: Automatic tool ejector Heavy-duty quill Low voltage controls Manual quill lock Coolant system ITEM: 30" Direct Drive Presses with Mechanical Clutch MANUFACTURER: JET MODEL: J-2360 PART# 354051

Specifications

ManufacturerJet
ModelJ-2360
ConditionNew
Stock Number354051
Part #354051
Drills to Center of Circle (in.)30
Cast Iron Drilling Capacity (in.)2-5/32
Mild Steel Drilling Capacity (in.)2
Distance Spindle to Column (max./in.)15
Number & Range of Spindle Speeds (RPM)9 (55, 98, 156, 198, 346, 456, 576, 822, 1338)
Spindle Taper4 MT
Spindle Travel (in.)10
Distance Spindle to Base (in.)50
Distance Spindle to Table (max/in.)30-1/2
Table Size22 x 19
T-Slot Number & Size (in.)3 & 5/8
Table Weight Capacity (lb.)400
Base Dimensions (in./ LxWxH)108 x 30 x 53
Base Slots Number & Size (in.)2 & 5/8
Motor4HP, 230/460V, 3Ph, Prewired 230V
Floor Space Required (in.)53 x 30 x 108
Net Weight (lb.)2,405
