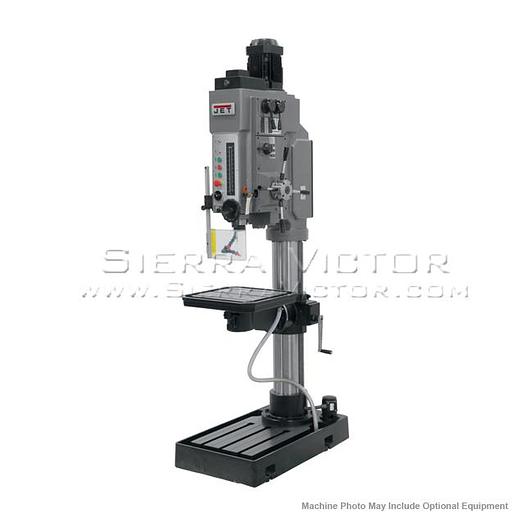

JET J-2350 Direct Drive Drill Press 354050

JET J-2350 Direct Drive Drill Press 354050


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET J-2350 Direct Drive Drill Press 354050 Shops must handle a wide variety of customer demands. This heavy-duty JET machine performs a variety of precision drilling applications. An easy-to-ready internal depth gauge prevents waste through errors, and a large production with T-slotted base holds over-sized pieces. Tempered, ground spindle with internal taper mounted in precision bearings for maximum accuracy, minimizing deflection Speed and feed selectors are located on one side of the drill head for convence and ease of operation Oversized base is precision ground with T-slot for added versatility and stability Mechanical powerfeed clutch engagement Two-speed forward and reverse switch Does NOT perform Tapping function EQUIPPED WITH: Automatic tool ejector Heavy-duty quill Low voltage controls Manual quill lock Coolant system ITEM: 28" Direct Drive Presses with Mechanical Clutch MANUFACTURER: JET MODEL: J-2350 PART# 354050


Stock Number354050
Part #354050
Drills to Center of Circle (in.)28"
Cast Iron Drilling Capacity (in.)1-7/8
Mild Steel Drilling Capacity (in.)1-3/4
Cast Iron Tapping Capacity (in.)
Steel Tapping Capacity (in.)
Quill Diameter (in.)
Distance Spindle to Column (max./in.)14
Number & Range of Spindle Speeds (RPM)82, 120, 180, 240, 354, 528, 678, 1026, 1524
Spindle Taper4 MT
Quill Feed Rates (IPR)
Spindle Travel (in.)9
Distance Spindle to Base (in.)49
Distance Spindle to Table (min/in.)
Distance Spindle to Table (max/in.)30-1/2
Table Size22 x 19
T-Slot Number & Size (in.)2 & 5/8
Table Weight Capacity (lb.)400
Base Slots Size (in.)5/8
Motor3HP, 230/460V, 3Ph, Prewired 230V
Floor Space Required (in.)40 x 30 x 95
Net Weight (lb.)1,810
