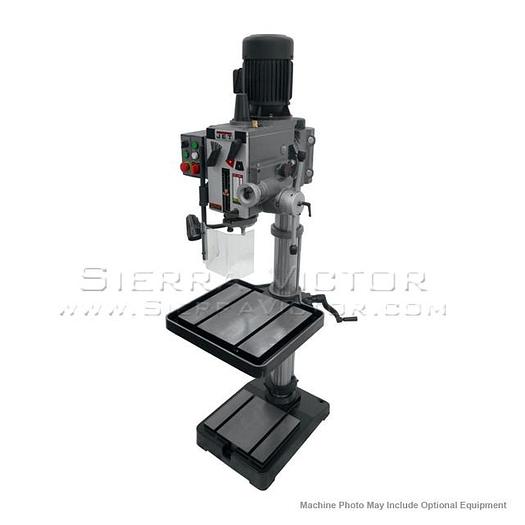

JET GHD-20PFT Gear Head Tapping Drill Press With Power Down feed 230V 3Ph 354026

JET GHD-20PFT Gear Head Tapping Drill Press With Power Down feed 230V 3Ph 354026

$4,999

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET GHD-20PFT Gear Head Tapping Drill Press With Power Down feed 230V, 3Ph, 354026 Achieve precision drilling and tapping from a design that includes an easy-to-read internal depth gauge, three power down feeds, built-in spindle lock and calibrated fine down feed. JET backs this reliable combination drilling and tapping press with a Two Year Warranty. Heavy-duty design allows a variety of precision drilling and tapping applications Integrated tapping and reversing controls Large production table and T-slotted base Easy-to-read internal depth gauge Three power downfeed rates Calibrated fine downfeed built in TEFC motor Built-in spindle lock Head tilts left or right Easily accessible table raiser Drill chuck arbor Draw bar ITEM: 20" x 30-7/8" Geared Head Drilling/Tapping Press MANUFACTURER: JET MODEL: GHD-20PFT PART# 354026

Specifications

ManufacturerJet
ModelGHD-20PFT
ConditionNew
Stock Number354026
Part #354026
Drills to Center of Circle (in)20
Cast Iron Drilling Capacity (in.)1-1/2
Steel Drilling Capacity (in.)1-1/4
Tapping Capacity Cast Iron (in.)15/16
Tapping Capacity Mild Steel (in.)15/16
Column Diameter (in.)4-1/2
Spindle TaperMT-3
Distance Spindle to Column (max/in.)10
Spindle Travel (in.) Manual4-1/2
Spindle Travel (in.) Auto4-1/4
Quill Diameter ( in.)3
Spindle Distance to Base (in.)44-5/16
Spindle Distance to Table (in.)30-1/2
Table Size (in.)21-3/4 x 19-1/2
T-Slots Number and Size (in.)2 & 5/8
T-Slot Centers (in.)9
Number of Spindle Speeds12
Range of Spindle Speeds (RPM) Lo Speed120 - 1,500
Motor2HP, 230V, 3Ph, 2 Speed
Overall Dimensions (in.)32 x 24 x 71
Net Weight (lb.)708
