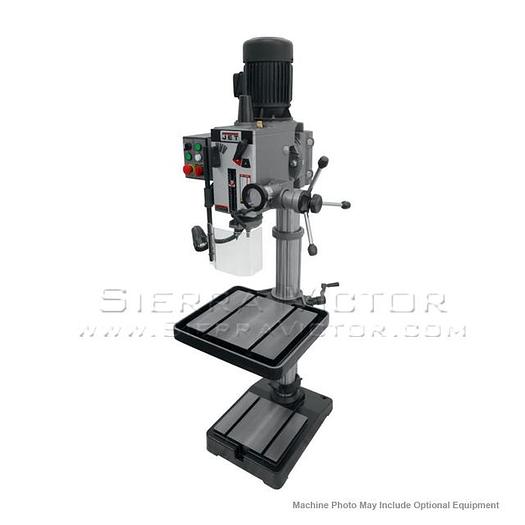

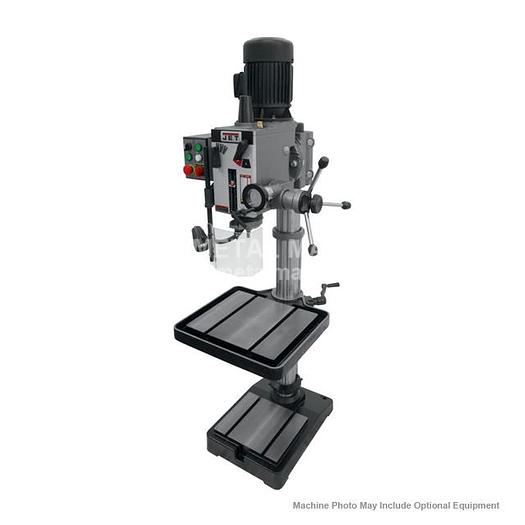

JET GHD-20T Gear Head Tapping Drill Press 230V 3PH 354022

JET GHD-20T Gear Head Tapping Drill Press 230V 3PH 354022

$4,299

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET GHD-20T, 20" Gear Head Tapping Drill Press 230V, 3Ph, 354022 JET Geared Head Drill Presses are ideal for repetitive drilling in a wide variety of materials. These drill presses are equipped with helical gears for smooth and quiet operation, a quick-release drill ejector and English/Metric depth gauge. T-slotted table, 8 spindle speeds, and a head and table that rotate 360° around the column enhance overall use and supply premier results. Heavy-duty design allows a variety of precision drilling and tapping applications Integrated tapping and reversing controls Large production table and T-slotted base Easy-to-read internal depth gauge Three power downfeed rates Calibrated fine downfeed built in TEFC motor Built-in spindle lock Head tilts left or right Easily accessible table raiser Drill chuck arbor Draw bar ITEM: 20" Geared Head Drill Press MANUFACTURER: JET MODEL: GHD-20T PART# 354022

Specifications

ManufacturerJet
ModelGHD-20T
ConditionNew
Stock Number354022
Part #354022
Drills to Center of Circle (in)20
Cast Iron Drilling Capacity (in.)1-1/2
Mild Steel Drilling Capacity (in.)1-1/4
Tapping Capacity Cast Iron (in.)15/16
Tapping Capacity Mild Steel (in.)15/16
Column Diameter (in.)4-1/2
Spindle TaperMT-3
Distance Spindle to Column (max/in.)10
Spindle Travel (in.) Manual5
Spindle Travel (in.) Auto
Quill Diameter ( in.)3
Spindle Distance to Base (in.)44-3/8
Spindle Distance to Table (in.)30-1/2
Table Size (in.)21-3/4 x 19-1/2
T-Slots Number and Size (in.)2 & 5/8
T-Slot Centers (in.)9
Number of Spindle Speeds12
Range of Spindle Speeds (RPM) Lo Speed60 - 3,000
Motor2HP, 230V, 3Ph, 2 Speed
Overall Dimensions (in.)32 x 24 x 71
Net Weight (lb.)700
