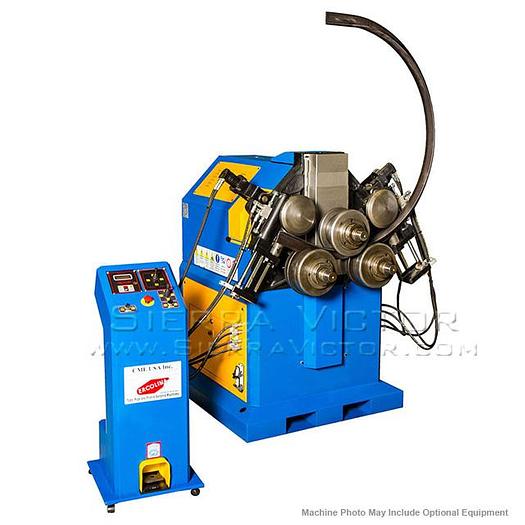

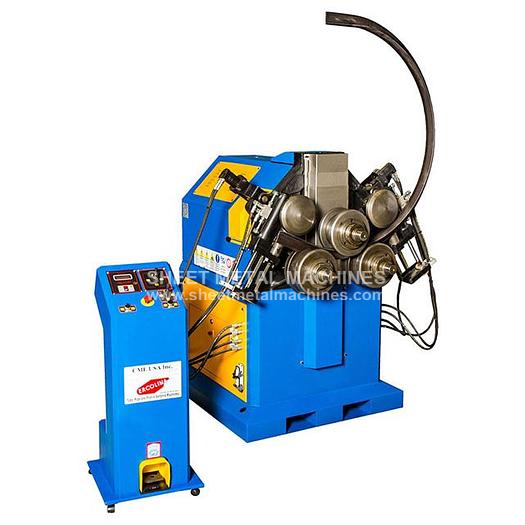

ERCOLINA Angle Roll-Section Bender with Hydraulic 3-Axis Twist Correctors CE70H3-RLI

ERCOLINA Angle Roll-Section Bender with Hydraulic 3-Axis Twist Correctors CE70H3-RLI
Contact us for price
Description
Please note: many products ship straight from manufacturer ERCOLINA Angle Roll-Section Bender with Hydraulic 3-Axis Twist Correctors CE70H3-RLI ITEM: 3" Angle Roll-Section Bender with Hydraulic 3-Axis Twist Correctors MANUFACTURER: ERCOLINA PART# CE70H3-RLI Ercolina’s CE70H3-RLI angle roll model has hydraulic center roll positioning with hydraulic anti-twist system for angle iron “Leg In” applications. Bending speeds 20% faster than competitive machines Universal tooling set included with each machine – 9.5″ O.D. Forged roll shafts precision ground and fitted for maximum performance and minimal deflection Heavy duty structure and rigid components for high section modulus ratings Reinforced engineered mainframe design proven to outperform competitive models Three axis hydraulic twist system for angle iron “Leg-in” applications Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation Programmable touch pad controls with digital center roll positioning display Memory storage with eight (8) individual programs and unlimited passes Remote control pendent with low voltage controls and foot pedal switch Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage Inline direct drive roll shaft system with motor and brake on each shaft All Ercolina angle roll-section bending machines include universal tooling sets. Modular Tooling Sets: Modular tooling sets support profiles, maintain smooth radius edges and reduce sharp knife-like edges.
Specifications
Manufacturer | Ercolina |
Model | CE70H3-RLI |
Condition | New |
Stock Number | CE70H3-RLI |
3-Axis Twist | Hydraulic |
Pipe (Max.) | 3" Sch. 40 |
Angle (Max.) | 3" x 3" x 3/8" |
Tube (Max.) | 3-1/2" - .216 wall |
Roll Shaft Diameter | 70mm |
Center Roll Positioning | Hydraulic |
Shaft Speed | 8 RPM |
Universal Tooling (Included) | 9-1/2" O.D. |
Programming | NC - Touchpad |
Number of Programs | 8 |
Distance between Shafts | 15" |
Section Modulus | 35 cm³ |
Operating Voltage | 220 or 440V, 3ph |
Length, Width, Height | 54" x 43" x 57" |
Weight | 3,100 lbs. |
