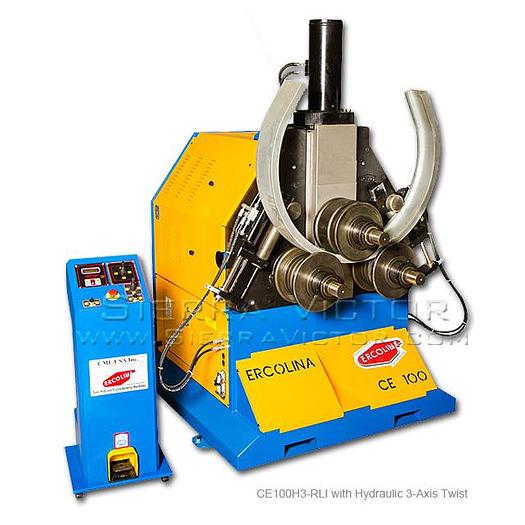

ERCOLINA Hydraulic Angle Roll-Section Bender with Hydraulic 3-Axis Twist Correction for Angle Iron CE100H3-RLI

ERCOLINA Hydraulic Angle Roll-Section Bender with Hydraulic 3-Axis Twist Correction for Angle Iron CE100H3-RLI

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ERCOLINA Hydraulic Angle Roll-Section Bender with Hydraulic 3-Axis Twist Correction for Angle Iron CE100H3-RLI ITEM: 4" Hydraulic Angle Roll-Section Bender with Hydraulic 3-Axis Twist Correction for Angle Iron MANUFACTURER: ERCOLINA PART# CE100H3-RLI Ercolina’s CE100 Angle Roll / Section Bender has a heavy duty structure with rigid components for high section modulus ratings. Bending speeds 20% faster than competitive machines Forged roll shafts precision ground and fitted for maximum performance and minimal deflection Heavy duty structure and rigid components for high section modulus ratings Reinforced engineered mainframe design proven to outperform competitive models Three axis hydraulic twist system for angle iron “Leg-in” applications Patented by Ercolina, simultaneous downfeed and roll movement minimizes deformation Programmable touch pad controls with digital center roll positioning display Memory storage with eight (8) individual programs and unlimited passes Remote control pendent with low voltage controls and foot pedal switch Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage Inline direct drive roll shaft system with motor and brake on each shaft All Ercolina angle roll-section bending machines include universal tooling sets. Modular Tooling Sets: Modular tooling sets support profiles, maintain smooth radius edges and reduce sharp knife-like edges.

Specifications

ManufacturerErcolina
ModelCE100H3-RLI
ConditionNew
Stock NumberCE100H3-RLI
Pipe (Max.)4" Sch. 40
Angle (Max.)4" x 4" x 1/2"
Tube (Max.)4-1/2" - .237 wall
Roll Shaft Diameter100mm
Center Roll PositioningHydraulic
Shaft Speed6 RPM
Universal Tooling (Included)12-5/8 O.D.
ProgrammingNC - Touchpad
Number of Programs8
Distance between Shafts19-1/4"
Section Modulus90 cm³
Operating Voltage220-440V, 3ph
Length, Width, Height66" x 58" x 83"
Weight5,550 lbs.
