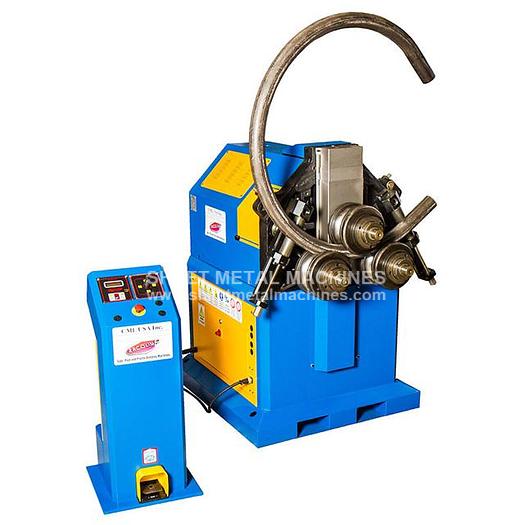

ERCOLINA Angle Roll-Section Bender with Manual 3-Axis Twist CE70H3

ERCOLINA Angle Roll-Section Bender with Manual 3-Axis Twist CE70H3

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ERCOLINA Angle Roll-Section Bender with Manual 3-Axis Twist CE70H3 ITEM: 3" Angle Roll-Section Bender with Manual 3-Axis Twist MANUFACTURER: ERCOLINA PART# CE70H3 Ercolina’s CE70H3 angle roll model has hydraulic center roll positioning with manual anti-twist system for angle iron “Leg In” applications. Bending speeds 20% faster than competitive machines Universal tooling set included with each machine – 9.5″ O.D. Forged roll shafts precision ground and fitted for maximum performance and minimal deflection Heavy duty structure and rigid components for high section modulus ratings Reinforced engineered mainframe design proven to outperform competitive models Three axis manual twist system for angle iron “Leg-in” applications Patented by Ercolina, simultaneous down feed and roll movement minimizes deformation Programmable touch pad controls with digital center roll positioning display Memory storage with eight (8) individual programs and unlimited passes Remote control pendent with low voltage controls and foot pedal switch Threaded roll shafts with micro metric flange adjustment helps eliminate spacer usage Inline direct drive roll shaft system with motor and brake on each shaft All Ercolina angle roll-section bending machines include universal tooling sets. Modular Tooling Sets: Modular tooling sets support profiles, maintain smooth radius edges and reduce sharp knife-like edges.

Specifications

ManufacturerErcolina
ModelCE70H3
ConditionNew
Stock NumberCE70H3
3-Axis TwistManual
Pipe (Max.)3" Sch. 40
Angle (Max.)3" x 3" x 3/8"
Tube (Max.)3-1/2" - .216 wall
Roll Shaft Diameter70mm
Center Roll PositioningHydraulic
Shaft Speed8 RPM
Universal Tooling (Included)9-1/2" O.D.
ProgrammingNC - Touchpad
Number of Programs8
Distance between Shafts15"
Section Modulus35 cm³
Operating Voltage220 or 440V, 3ph
Length, Width, Height54" x 43" x 57"
Weight2,860 lbs.
