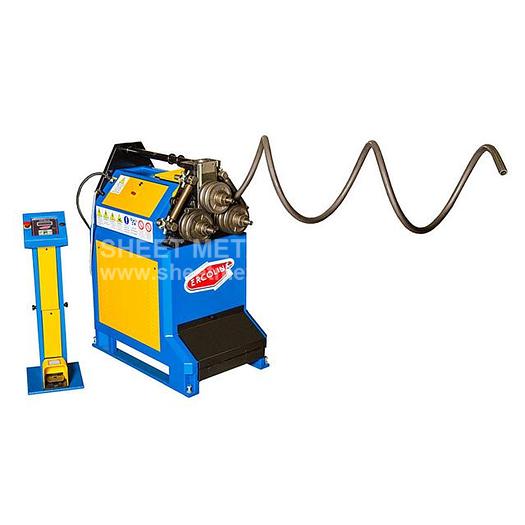

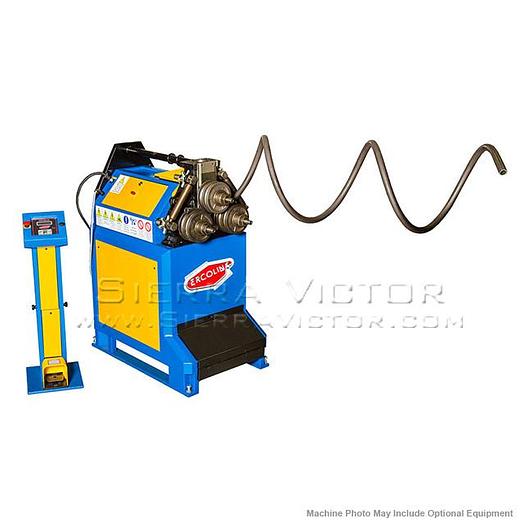

ERCOLINA Hydraulic Angle Roll-Section Bender CE40H3

ERCOLINA Hydraulic Angle Roll-Section Bender CE40H3


orCall 386-304-3720


Please note: many products ship straight from manufacturer ERCOLINA Hydraulic Angle Roll-Section Bender CE40H3 ITEM: 2" Hydraulic Angle Roll-Section Bender MANUFACTURER: ERCOLINA PART# CE40H3 Ercolina’s CE50 angle roll models are available either with manual or hydraulic center roll positioning. Bending speeds 20% faster than competitive machines Universal tooling set included with each machine – 6-5/8″ OD Forged roll shafts precision ground and fitted for maximum performance and minimal deflection Heavy duty structure and rigid components for high section modulus ratings Reinforced engineered mainframe design proven to outperform competitive models Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation on hydraulic model Programmable touchpad controls with digital center roll position display on hydraulic model Digital center roll position display on manual model Hydraulic machine with memory storage with eight (8) individual programs and unlimited passes Remote pendent with low voltage controls and foot pedal switch Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage Inline direct drive roll shaft system Control tower with low voltgage controls and foot pedal All Ercolina angle roll-section bending machines include universal tooling sets.


Stock NumberCE40H3
Pipe (Max.)2" Sch. 40
Angle (Max.)2" x 2" x 1/4"
Tube (Max.)2-1/2" - .125 wall
Roll Shaft Diameter40mm
Center Roll PositioningHydraulic
Shaft Speed10 RPM
Universal Tooling (Included)6-5/8" O.D.
ProgrammingNC - Touchpad
Number of Programs8
Distance between Shafts10-5/8"
Operating Voltage220V or 440V 3ph
Length, Width, Height39" x 26" x 59"
Weight850 lbs.
