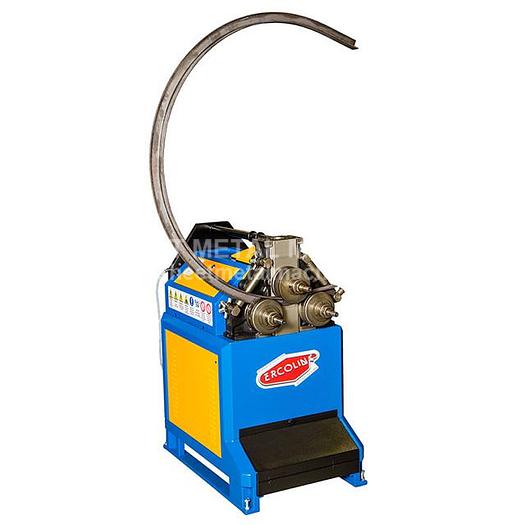

ERCOLINA Hydraulic Angle Roll-Section Bender CE50H3

ERCOLINA Hydraulic Angle Roll-Section Bender CE50H3

$20,900

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer ERCOLINA Hydraulic Angle Roll-Section Bender CE50H3 ITEM: 2-1/2" Hydraulic Angle Roll-Section Bender MANUFACTURER: ERCOLINA PART# CE50H3 Ercolina’s CE50H3 angle roll model offers hydraulic center roll positioning. Bending speeds 20% faster than competitive machines Universal tooling set included with each machine – 7″ OD Forged roll shafts precision ground and fitted for maximum performance and minimal deflection Heavy duty structure and rigid components for high section modulus ratings Reinforced engineered mainframe design proven to outperform competitive models Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation Programmable touchpad controls with digital center roll positioning display Hydraulic machine with memory storage with eight (8) individual programs and unlimited passes Remote pendent with low voltage controls and foot pedal switch Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage Inline direct drive roll shaft system Control tower with low voltage controls and foot pedal All Ercolina angle roll-section bending machines include universal tooling sets.

Specifications

ManufacturerErcolina
ModelCE50H3
ConditionNew
Stock NumberCE50H3
Pipe (Max.)2-1/2" Sch. 40
Angle (Max.)2-3/8" x 2-3/8" x 1/4"
Tube (Max.)3" – .095 wall
Roll Shaft Diameter50mm
Center Roll PositioningHydraulic
Shaft Speed9 RPM
Universal Tooling (Included)7" O.D.
ProgrammingNC - Touchpad
Number of Programs8
Distance between Shafts11-7/8"
Operating Voltage220V or 440V 3ph
Length, Width, Height45" x 29" x 52"
Weight1,100 lbs.
