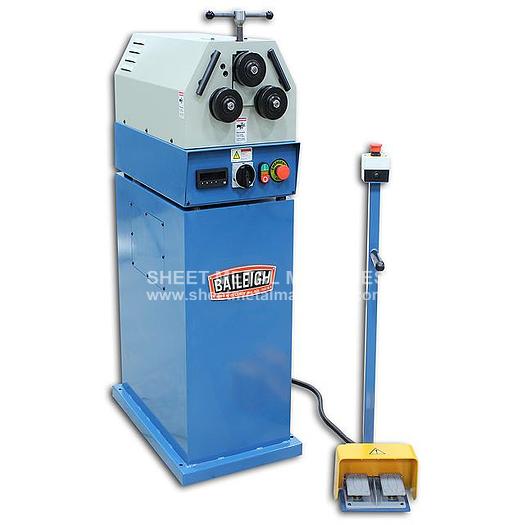

BAILEIGH Roll Bender R-M20-220

BAILEIGH Roll Bender R-M20-220

$4,695

orCall 386-304-3720

Description

  • Please note: many products ship straight from manufacturer We designed the R-M20 ring roller with tight, compact roll formation to shape small diameter material and roll coils without trouble.
  • Runs on 220-volt 3-phase power.
  • Maximum capacity of .5" schedule 40 pipe and 1" round tube.
  • Adjustable lateral guides let you bend to just about any coil width imaginable.
  • Convenient foot pedals control forward and reverse roll direction.
  • Easy-to-read digital display shows top roll position, making bend repeatability a cinch.
  • Emergency stop protects your safety, as well as the machine.
  • Rugged steel frame plus hardened, ground, and polished steel shafts ensure accuracy and years of productivity.
  • Machine head separates from included stand to make the machine portable and easy to store—an advantage for working in small shops or traveling to work on-site.
  • Covered by a 1-year parts warranty and lifetime technical support from Baileigh’s experienced reps.

ITEM: Roll Bender MANUFACTURER: BAILEIGH MODEL: R-M20-220

Specifications

ManufacturerBaileigh Industrial
ModelR-M20-220
ConditionNew
Stock NumberR-M20-220
Driven Rolls2
Roll AdjustmentManual
Pipe CapacitySize: .5” (sch.40) / Min. Dia.: 14”
Round Tube CapacitySize: 1" (.0625") Min. Dia.: 16"
Square Tube Capacity.75" (.0625") Min. Dia.: 12"
Solid Round CapacitySize: .5" Min. Dia.: 5"
Flat Bar Easy WaySize: 1.75" Min. Dia.: 12"
Flat Bar Hard WaySize: 1" Min. Dia.: 8"
Angle Iron CapacitySize: .75" (.125") Min. Dia.: 10"
Shaft Diameter.78"
Shaft Center Distance Lower Rolls10.88"
Upper Roll Dia.3.38"
Lower Roll Dia.3.38"
PinchSingle
Power220V, 3-Phase
*Optional ToolingSome applications may require optional tooling. Please contact Sierra Victor Industries with specific application details.
Speeds14285
Shipping Dimensions (L/W/H)60" x 44" x 68"
Shipping Weight420 lbs.
