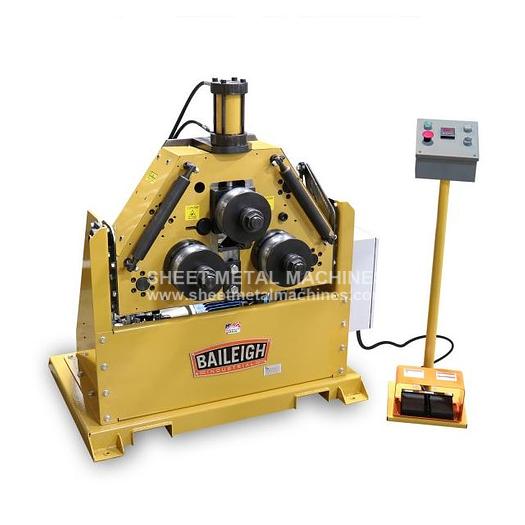

Please note: many products ship straight from manufacturer BAILEIGH Hydraulic Roll Bender R-H60-HD The R-H60-HD hydraulic ring roller won’t flinch while bending large radii out of tough materials. This tubing roller’s programmer controls also simplify production runs.

  • Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
  • Bends up to 2” square x .120” wall tubing and 2.5” schedule 40 pipe, among other materials.
  • All 3 rolls turn on industrial grade hydraulic motor.
  • Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.
  • Digital readout with programmable stop controls upward and downward roll position for easy repeatability.
  • Operator podium includes foot pedal, allowing you to stop and start the machine with ease.
  • You can safely tip this pipe bender backward into a horizontal position with its unique hydraulic tipping system when rolling larger diameters.
  • Steel plate frame adds strength to the machine and minimizes flex.
  • Backed by a 1-year parts warranty and lifetime technical support by phone from our knowledgeable team.


Why choose the Hydraulic Roll Bender R-H60 over similar machines?

  • Heavy steel construction ensures that the R-H60-HD will deliver accurate bends at maximum capacity for years.
  • We use only the highest-quality components that keeps machinery from wearing out, and helps this pipe bender to last longer.
  • Comes equipped with segment rolls, lateral roll guides for coiling, and an operator pendant—features that some other companies might count as upgrades.
  • Accepts durable tooling options, made and stocked by Baileigh, to suit a variety of applications.
  • Expert assistance and advice is always a phone call away! Baileigh’s experienced team of reps are on-call to troubleshoot as long as you’re using a Baileigh Roll Bender.

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



ManufacturerBaileigh Industrial
Stock NumberR-H60-HD
Country of ManufactureUnited States
Motor Hp3.5
Driven Rolls3
Roll AdjustmentHydraulic
Pipe CapacitySize: 2.5" (sch. 40) / Min. Dia.: 48"
Round Tube CapacitySize: 2.75" (.083") / Min. Dia.: 60"
Square Tube CapacitySize: 2" (.120") / Min. Dia.: 51"
Solid Round CapacitySize: 1.5" / Min. Dia. 28"
Flat Bar Easy WaySize: 4" (.75") / Min. Dia. 28"
Flat Bar Hard WaySize: 3.25" (.375")/ Min. Dia.: 32"
Angle Iron CapacitySize: 2" (.250")/ Min. Dia.: 36"
Shaft Diameter2.36"
Shaft Center Distance Lower Rolls9.562"
Lower Roll Dia.5.827"
Power220V Single Phase
Shipping Dimensions (L/W/H)60" x 44" x 68"
Shipping Weight1,188 lbs.
Material TypeAll Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional ToolingSome applications may require optional tooling. Please contact Sierra Victor Industries with specific application details.
