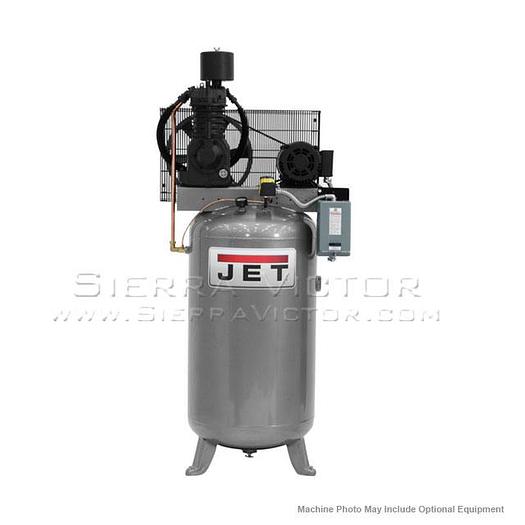

JET JCP-804, 80 Gallon Vertical Air Compressor 506804

JET JCP-804, 80 Gallon Vertical Air Compressor 506804


orCall 386-304-3720


Please note: many products ship straight from manufacturer JET JCP-804, 80 Gallon Vertical Air Compressor, 506804 JET’s Air Compressors are ideal for general compressed air needs including machine shops, fabricating shops, auto motive service and body shops, fleet maintenance, woodworking shops, farm and general industrial applications. Cast iron pumps, ASME-certified tanks, and industrial-duty motors are essential for reliable performance in demanding environments. ITEM: 80 Gal. Vertical Air Compressor MANUFACTURER: JET MODEL: JCP-804 PART# 506804


Stock Number506804
Tank Size (Gal.)80 Gallon
Tank ConfigurationVertical
ASME CertifiedYes
Maximum Pressure (PSI)175 PSI
Tank MAWP200 PSI
Displacement CFM31.4
Air Delivery (CFM)25.1 CFM @ 90 PSI
Air Delivery (Max. CFM)24.0 CFM @ 175 PSI
Pump DesignTwo Stage
Pump MaterialCast Iron
Pump RPM1,020
Rated Pump Life15,000 Hours
Duty Cycle (%)80%
Motor (HP)7.5 HP, 230/460V, 3 Ph
Motor Amps17.9 / 8.97
Overall Dimensions (in./ L x W x H)25 x 42 x 78
Gross Weight540 lbs.
