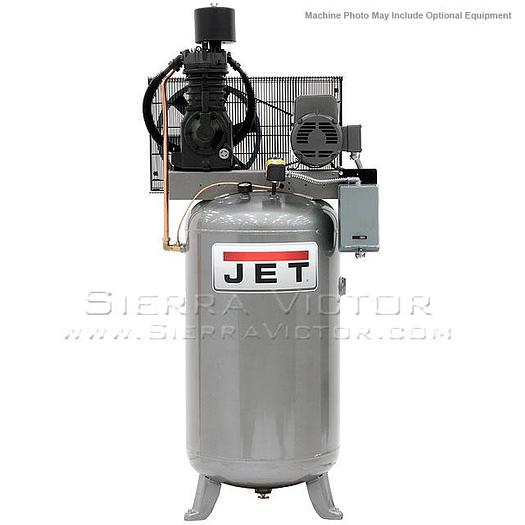

JET JCP-803, 80 Gallon Vertical Air Compressor, 506803

JET JCP-803, 80 Gallon Vertical Air Compressor, 506803

$3,545.99

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer JET JCP-803, 80 Gallon Vertical Air Compressor, 506803 JET’s Air Compressors are ideal for general compressed air needs including machine shops, fabricating shops, auto motive service and body shops, fleet maintenance, woodworking shops, farm and general industrial applications. Cast iron pumps, ASME-certified tanks, and industrial-duty motors are essential for reliable performance in demanding environments. ITEM: 80 Gal. Vertical Air Compressor MANUFACTURER: JET MODEL: JCP-803 PART# 506803

Specifications

ManufacturerJet
ModelJCP-803
ConditionNew
Stock Number506803
Tank Size (Gal.)80 Gallon
Tank ConfigurationVertical
ASME CertifiedYes
Maximum Pressure (PSI)175 PSI
Tank MAWP200 PSI
Displacement CFM31.4
Air Delivery (CFM)25.1 CFM @ 90 PSI
Air Delivery (Max. CFM)24.0 CFM @ 175 PSI
Pump DesignTwo Stage
Pump MaterialCast Iron
Pump RPM1,020
Rated Pump Life15,000 Hours
Duty Cycle (%)80%
Motor (HP)7.5 HP, 230V, 1 Ph
Motor Amps31
Overall Dimensions (in./ L x W x H)25 x 42 x 78
Gross Weight540 lbs.
