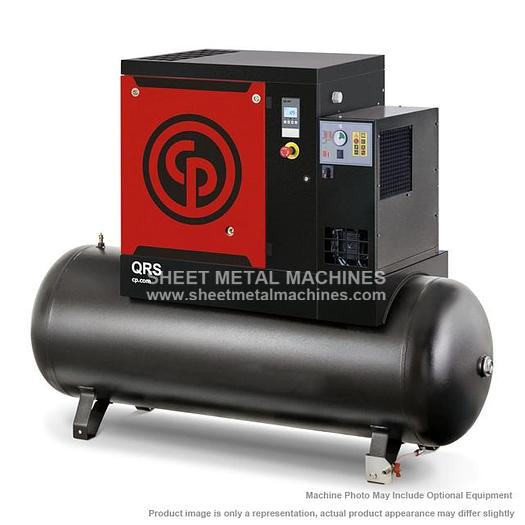

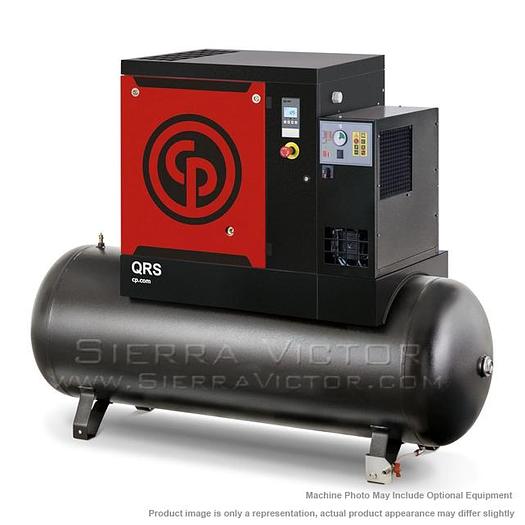

CHICAGO PNEUMATIC 10 HP Belt Drive Quiet Rotary Screw Air Compressor Tank Mount w/Dryer QRS10 HPD-150TM

CHICAGO PNEUMATIC 10 HP Belt Drive Quiet Rotary Screw Air Compressor Tank Mount w/Dryer QRS10 HPD-150TM

$10,755

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer CHICAGO PNEUMATIC 10 HP Belt Drive Quiet Rotary Screw Air Compressor Tank Mount w/Dryer QRS10 HPD-150TM Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) air compressors can meet the compressed air demands of a tire shop, maintenance shop, vehicle body shop, paint shop or automotive dealership. With its whisper quiet design the QRS can be installed almost anywhere, and is offered with an optional mounted dryer (with tank mounted option only). The QRS is the leading rotary screw compressor for light industrial applications. Low sound enclosure 150 psig standard (125 psig available 10-15 HP) Continuous operating capability 60 gal. ASME/CRN receiver tank (3-7.5 HP Tank Mounted Version) 120 gal. ASME/CRN receiver tank (10-15 HP Tank Mounted Version) Single phase 230 TEFC motor (3-7.5 HP) 3-phase, 208-230/460V and 575V, TEFC Motor Start/stop operation – QRS 3.0 - 7.5 HP 3-phase Load/no-load operation with timed shutdown – QRS 5.0 - 7.5 HP single phase and QRS 10-15 HP 3-phase UL and cUL approved control panel 5 year warranty with authorized start-up Spin-on oil filter and separator NEMA 1 electrical protection Vibration isolated assembly 125 psig also available - CALL TO SPECIFY ITEM: 10 HP Belt Drive Quiet Rotary Screw Air Compressor Tank Mount with Dryer MANUFACTURER: CHICAGO PNEUMATIC MODEL: QRS10 HPD-150TM

Specifications

ManufacturerChicago Pneumatic
ModelQRS10 HPD-150TM
ConditionNew
Stock NumberQRS10 HPD-150TM
Horsepower10
Acfm @ 125 psig37
Acfm @ 150 psig33
Sound Level (dBA)66
Base Mount L x W x H (in) Net Wt. / Shipping Wt. (lb)32" x 25" x 39"
Tank Mount L x W x H (in) Net Wt. / Shipping Wt. (lb)76" x 25" x 58"
Tank Mount w/Dryer L x Wx H (in) Net Wt. / Shipping Wt. (lb)76" x 25" x 58"
