VICTOR 3090DCM Digital Control Mill

VICTOR 3090DCM Digital Control Mill

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

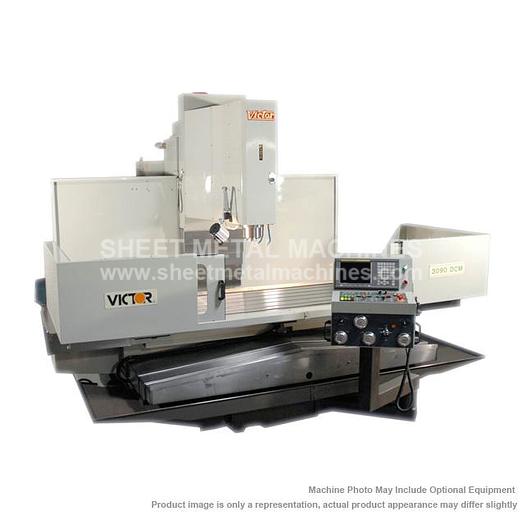

VICTOR 30 x 90 inch Digital Control Mill 3090DCM

  • A highly reliability 3-axis Vertical Machining Center with advanced digital servo technology, user friendly operation and simple operation programming support tool.
  • Fanuc Oi-MD CNC controller
  • Main machine body is made from rugged Meehanite casting for excellent vibration damping and heavy workloads
  • Heavy duty box way construction
  • Double wall working table and rigid saddle structure provide unsurpassed rigidity
  • Both side of the saddle are coated with TURCITE B for smooth traversing, reducing friction and wear resistance
  • The saddle, slideway and table are hardened and precision ground to ensure long life
  • Automatic lubrication system for all ballscrews and sliding ways to keep high precision of the machine - X and Y axes with 20 lube points and Z-axis with 13 lube points
  • X and Y axes slideway and ballscrew are protected by telescopic steel shield to keep chips out
  • Z-axis ballscrew is covered by conical spring cover to protect against chips and dust
  • High accuracy C-5 grade ballscrews on X, Y and Z axes to ensure backlash-free transmission
  • High rigidity one-piece CNC spindle head
  • Precision P4 spindle bearing
  • Counter balanced spindle head
  • Built-in coolant system
  • Optional 24 tools carousel type or arm type automatic tool changer (ATC)


    STANDARD ACCESSORIES:

  • Servo spindle motor
  • One remote pendant handwheel
  • Table chip guard with dual sliding doors
  • Bottom coolant and chip tray
  • Dual rear splash shields
  • Telescopic steel way covers on X and Y axes
  • Conical spring cover on Z-axis ballscrew
  • Air power drawbar
  • Halogen work light
  • Built-in auto lubrication system
  • Built-in flood coolant system


Design and Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerVictor
Model3090DCM
ConditionNew
Stock Number3090DCM
CNC controllerFanuc Oi-MD
Number of electronic handwheels One remote pendant handwheel
X-axis travel78.75"
Y-axis travel35"
Z-axis travel28"
Spindle nose to table surface3" ~ 32"
Spindle center to column distance35"
Table size92" x 30"
T-slot width0.71"
Number of T-slots5
Max. weight3,960 lb.
Max. speed8,000 rpm
Spindle taperCAT 40 (CAT 50 optional)
Drive systemDirect drive
Spindle motor15 HP
X-axis rapid traverse400 ipm
Y-axis rapid traverse400 ipm
Z-axis rapid traverse300 ipm
ATC TypeCarousel (optional) / Arm type (optional)
Capacity24
Servo motorFanuc A/C brushless servo motor
Amplifier systemFanuc digital servo amplifier drives
X-axis servo motor torque188.5 in-lb.
Y-axis servo motor torque188.5 in-lb.
Z-axis servo motor torque188.5 in-lb.
Positioning0.0004"
Repeatability0.0002"
Electrical220V / 3 Phase
Shipping dimensions (LxWxH)195" x 145" x 117"
Net weight16,940 lb.
Gross weight17,380 lb.
