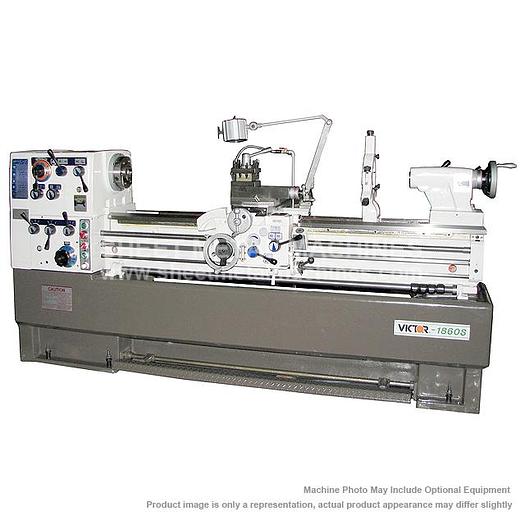

VICTOR 18 x 60 inch Precision Heavy-Duty Lathe 1860S

  • High performance precision heavy-duty lathe with rigid one piece Meehanite casting bed provides superior accuracy, durability, and reliability. Exceptional high quality construction results in stability and consistency.
  • One piece heavy-duty cast iron base with special exit for chips removal
  • Oversized rigid compound rest for heavy cutting
  • Hardened and precision ground gears and bedways
  • Hardened and ground spindle nose
  • Full Meehanite casting bed
  • Headstock transmission gears driven by spline shafts
  • Spindle is supported at 3 points by precision bearings
  • Safety overload device
  • Inch/metric threading without changing gears
  • 7.5 HP main motor delivers full power at all 12 speeds


  • Removable gap
  • Tailstock
  • Coolant system
  • Chuck cover with limit switch
  • Full length foot brake
  • D.P. / module thread change gears
  • Threading dial indicator
  • Center sleeve
  • Dead center M.T. #4
  • Leveling screws and pads
  • Manual and parts list


  • 8" 3-jaw chuck
  • Steady rest with rollers
  • Follow rest
  • 4-way tool post
  • Face plate
  • Full length splash guard
  • Halogen work light
  • Chuck cover with limit switch

Design and Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.



Stock Number1860S
Swing over bed:18"
Swing over cross slide:11-5/16"
Swing over gap:25-3/16"
Bed width:11-13/16"
Distance between centers:60"
Spindle bore diameter:2.37"
Spindle bore taper:M.T. #6
Taper of center in sleeve:M.T. #4
Spindle nose:D1-6
Number of spindle speeds:12 Steps
Range of spindle speeds (rpm):30 ~ 2,000 rpm
Speed selections:30, 55, 70, 95, 160, 200, 325, 540, 700, 1000, 1600, 2000
Range of longitudinal feeds:0.0012” ~ 0.0252”/rev.
Range of cross feeds:0.0006” ~ 0.0126”/rev.
Inch threads:2 ~ 56 TPI x 40 kinds
Metric threads:0.4 ~ 14 mm x 52 kinds
Cross slide travel:9"
Compound slide travel:4-3/4”
Tailstock taper center:M.T. #4
Tailstock quill travel:5-9/10"
Main motor:7.5 HP, 3 Phase
Coolant pump:1/8 HP
Shipping dimensions (LxWxH): 110” x 40” x 61”
Gross weight: 5,060 lbs.
