Description

Please note: many products ship straight from manufacturer

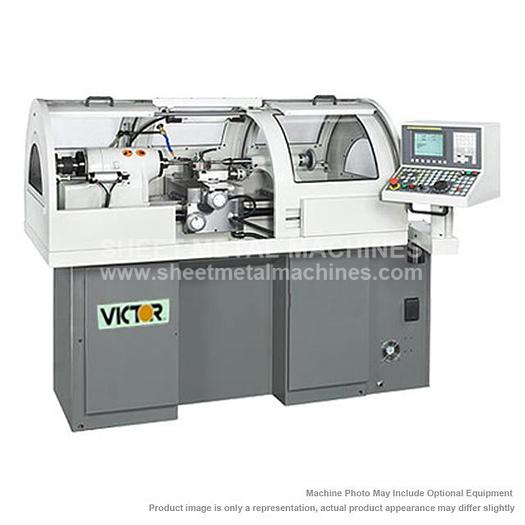

VICTOR 11 x 18 inch Digital Control Lathe 1118DCL

  • A powerful multi-function super precision CNC toolroom lathe comes with a smooth 3 HP inverter spindle motor that runs virtually vibration free and extremely quite.
  • Fanuc Oi Mate T ultra-compact CNC integrated with LCD display plus Manual Guide
  • Spindle runout within 50 millionths
  • Main casting pieces are by Meehanite castings for superior dampening and rigidity
  • High precision ballscrew on X, Z-axis
  • X, Z-axis feed is driven by an AC servo motor
  • X, Z-axis ballscrews directly coupled to AC servo motor, minimizing backlash
  • Hardened and ground bedways
  • Hardened and ground spindle mounted on high precision preloaded angular contact ball bearings
  • Turcite-B slideway bearing surface between carriage and bed to provide wear resistance
  • The saddle slideways are coated with Turcite-B for maximum wear resistance.
  • The cross slideways have hardened and ground tool steel inserts for smooth accurate movement.


STANDARD ACCESSORIES:

  • Hand lever type 5C collet closer
  • Manual rigid tailstock with inch/metric graduations
  • Coolant system
  • Work light


SETUP OPTIONS:


  • Setup options on 1118DCL Toolroom Lathe: (SEE PHOTOS)
  • Bare cross slide with precision locator holes for custom applications.
  • Quick-change tool post on short gang tool plate.
  • Quick change tool post on compound tool slide and single tool holder in the rear.
  • Two short gang tool plates setup with opening in the center for long work piece applications.
  • One full length gang tool plate with T-slots to accommodate variety of tool holders
  • Multiple single gang tool plates each holding a single tool holder.
  • Gang tooling setup on 1118DCL Toolroom Lathe.


OPTIONAL ITEMS:

  • (See Photos)
  • Air operated 5C collet closer
  • Expanding Collet
  • Vacuum Chuck
  • Hydraulic Chuck
  • Chuck Back Plate
  • 6" 3-jaw Chuck
  • Lathe Dog
  • Face Plate
  • Pneumatic Chuck
  • Precision Diaphragm Chucks
  • Step Chuck
  • Tool Plate for Quick Change Toolpost
  • ER Collet Holder
  • Square Shank Tool Holder, Right Hand
  • Square Shank Tool Holder, Left Hand
  • Square Shank Tool Holder, 1 Position
  • Gang Tool Block 408mm
  • Gang Tool Block 96mm
  • Gang Tool Block 48mm
  • Drill Holder, Adjustable Center
  • Releasing Die Nut Holder
  • Tap Holder


Design and Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerVictor
Model1118DCL
ConditionNew
Stock Number1118DCL
CNC controllerFanuc 0i Mate T
With jaw chucks6"
With expanding collets3"
With round 5C collets 1-1/16"
With hexagon 5C collets7/8"
With square 5C collets3/4"
With step chucks 1-1/16” to 6”
Spindle nose diameter2.189"
Spindle nose I.D. / O.D. 5C / 4º taper
Hole through spindle1-1/4"
Variable spindle speeds50 ~ 4,000 rpm (3 HP) / 50 ~ 6,000 rpm (5 HP optional)
Maximum swing14.96"
Maximum turning diameter6"
Maximum turning length18"
Quick-action compound slide travel0.1"
Maximum cross slide travel (X-axis)8.66"
Maximum longitudinal travel (Z-axis)13.39"
Rapid traverse (X / Z axis)787 ipm
Tailstock taper centerM.T. #2
Tailstock quill diameter1.36"
Tailstock quill travel3-3/4"
Inverter spindle motor3 HP (5 HP optional)
X / Z-axis servo motorX : ß2 / Z : ß2
Coolant pump motor1/4 HP
Voltage220V / 3 Phase
Shipping dimensions (LxWxH)87" x 44" x 85"
Gross weight2,860 lbs.
