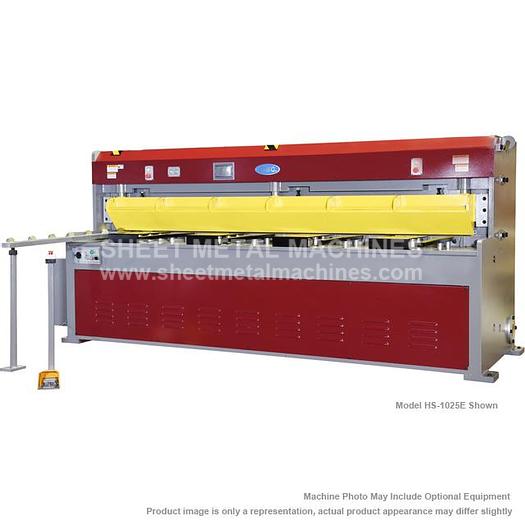

GMC Heavy Duty Hydraulic Shear w/Manual Back Gauge HS-1010M
Sale

GMC Heavy Duty Hydraulic Shear w/Manual Back Gauge HS-1010M
$27,850 GMC SPECIALS - REDUCED PRICES AND FREE SHIPPING ON SELECT SHEARS, BRAKES AND LATHES - WHILE SUPPLIES LAST
Description
Please note: many products ship straight from manufacturer GMC 10' x 10 ga Heavy Duty Hydraulic Shear with Manual Back Gauge: HS-1010M
- ISO 9001 certified
- Taiwan machines
- 24” manual back gauge, one side handwheel operate
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- Shadow line for accurate straight cutting
- 60” squaring arm with inlaid inch/metric dual scale
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
EQUIPPED WITH:
- 24” manual back gauge(one side wheel drive)
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA)
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
OPTIONAL ITEMS: CALL FOR PRICE
- Safety fence for enclosure of the back side of the machine - $1,150.00
Specifications
Manufacturer | GMC Machine Tools |
Model | HS-1010M |
Condition | New |
Stock Number | HS-1010M |
Cutting capacity: mild steel | 10' x 10 Ga |
Cutting capacity: stainless steel | 10' x 14 Ga |
Blade length | 10' 1" = 121" |
Strokes per minute adjustable | 10-15 |
Throat Depth | 18" |
Worktable height | 34-1/2" |
Front support arm length | 24" |
Back gauge | 24" Manual Back gauge |
Main motor | 10 HP, 220V, 3-phase |
Power B.G. motor | 1 HP, 220V/440V, 3 Phase |
Blade rake angle | 2 degree |
Oil tank cap. | 26 Gal. |
Machine Dimensions | 178” x 67” x 65” |
Machine weight | 8,850 lbs. |
