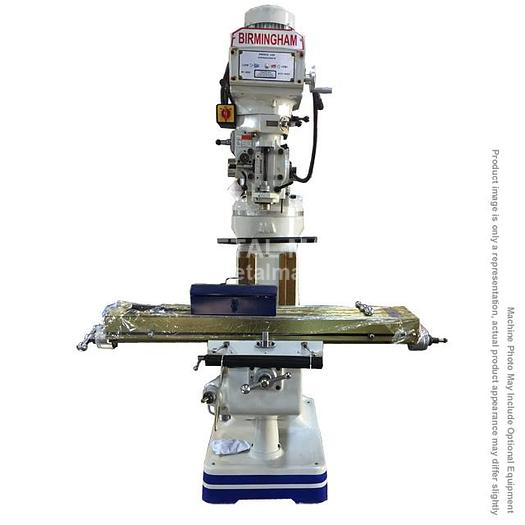

BIRMINGHAM Variable Speed Vertical Knee Mill BPV-3949

BIRMINGHAM Variable Speed Vertical Knee Mill BPV-3949

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

BIRMINGHAM 9" x 49" Variable Speed Vertical Knee Mill BPV-3949


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerBirmingham
ModelBPV-3949
ConditionNew
Stock NumberBPV-3949
Table Size9" x 49"
Table Load Capacity300kg (661 lbs.)
Longitudinal Travel (X)33-1/4" (845mm)
Cross Travel (Y)14-1/5" (360mm)
Vertical Travel (Z)15-3/4" (400mm)
Distance from table to spindle2-3/8" - 18-1/5" (60-460mm)
Ram Travel12-3/4" (324mm)
Quill Diameter3-3/8" (86mm)
Quill Travel5" (127mm)
Quill Feed0.04/0.08/0.15mm/rev (0.0015", 0.003", 0.006"/rev.)
Spindle SpeedVari-speed 60-4200rpm
Spindle TaperR8 (NT30)
Spindle Motor3 HP
Head TiltingForward & Back: ±45°, Right & Left: ± 90°
Guiding Tracks, X.Y.X.▲.▲.▲
Machine Dimension (L x W x H)57" x 63" x 83" (1450 x 1600 x 2100mm)
Machine Weight1,924 lbs. (875kgs)
Weight of wooden package309 lbs. (140kg)
