JET ELITE EVTBS-16V EVS Vertical Tilt Frame Bandsaw 891200

JET ELITE EVTBS-16V EVS Vertical Tilt Frame Bandsaw 891200

$19,699

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

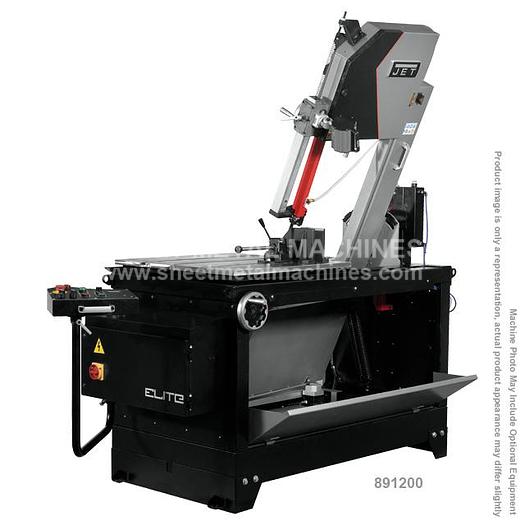

JET ELITE EVTBS-16V 16" EVS Vertical Tilt Frame Bandsaw 891200

  • At the heart of every metalworking operation, there is a saw. Saws that are being challenged to cut a wider variety of materials in different ways than ever before. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer and operate more safely at the same time. The Elite EVTBS-16" EVS Vertical Tilt Frame Bandsaw is the answer to your shops needs. The 3 degree forward approach angle allows for increased efficiency in cutting structural materials. Inverter drive with speed range of 76-30 SFPM and a Digital Readout to always let you know what speed you are at. The quick action vise saves set up time and can be moved in either the right or left of the blade and fast locking. Durability is built into the steel frame construction that reduces vibrations and deflection. Safety is a must with CSA/US Certification, the blade is fully guarded, and a strong internal spring allows the operator to safely move the bow and fix at any angle. Elite saws are the most precise, more durable and safest bandsaws you could ever have in your shop.

PRECISION

  • Electronic Variable Speed 76-430 SFPM
  • Inverter drive variable speed with Digital Readout for FPM
  • Blade tension gauge helps to ensure the blade is in the correct cutting position
  • Swing away control box allows Operator to use in any position
  • Quick action vise saves set up time and can be moved to either the right or left of the blade and fast locking
  • 3° forward approach angle for increased efficiency in cutting of structural materials.
  • Fully adjustable air hydraulic control for bow travel

DURABILITY

  • Heavy-duty steel construction reduces vibration and deflection
  • Machined plate steel worktable provides a sturdy work area
  • Built-in self-propelled blade brush prevents chip build up in blade guides
  • Coolant is distributed through the blade guides through an integrated coolant system
  • Carbide & roller blade guides
  • Automatic stops can be pre-set to stop advancement and return of the blade

SAFETY

  • CSA Certified Electrics following strict guidelines and electrical requirements and are certified by the CSA Group
  • Blade tension gauge for quick alignment of the blade
  • Strong internal spring with increased strength allows the operator to safely move the bow and fix at any angle
  • Integrated pressurized wash off hose for easy machine clean up
  • LED work lamp
  • Auto-shut off switch stops the sawing process
  • Blade is fully guarded for Operator safety
  • Leveling feet included for mounting the saw safely to the shop floor


STANDARD EQUIPMENT:

  • Material Stop
  • Wash-off Hose
  • Blade tension gauge
  • Coolant System
  • LED work lamp
  • Leveling Feet
  • Toolbox


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR – Parts & Labor


Specifications

ManufacturerJet
ModelEVTBS-16V
ConditionNew
Stock Number891200
Cutting Capacities: Round 45° Right (in.)13-1/4
Cutting Capacities: Round 90° (in.)16
Cutting Capacities: Round 45° Left (in.)11-1/2
Cutting Capacities: Rectangle 45° Right (in.)13-1/4 x 16
Cutting Capacities: Rectangle 90° (in.)20 x 16
Cutting Capacities: Rectangle 45° Left (in.)11-1/2 x 16
Cutting Capacities: Square 45° Right (in.)13-1/4 x 13-1/4
Cutting Capacities: Square 90° Right (in.)16 x 16
Cutting Capacities: Square 45° Left (in.)11-1/2 x 11-1/2
Mitering Angles (deg.)45 ° - 90° - 45°
Throat Depth (in.)16
Tee Slots (in.)3/4
Working Surface (in.)29-1/2 x 14-3/16
Working Height (in.)39-3/4
Max. Vise Opening (in.)17-1/2
Vise Height (in.)5-29/32
Blade Size (L x W x H/ in.)1-1/16 x 0.035 x 168-1/2 4/6T
Blade Wheel Diameter (in.)18-3/64
Blade Speed (SFPM - Electronic Variable Speed)76-430
Feed Force (lbs.)100
Coolant Motor (HP)32W
Reservoir Capacity (liter)60
Electrics2HP, 230V, 3Ph (#891200) | 2HP, 4602V, 3Ph (#891210)
Overall Dimensions (L x W x H/ in.)94-1/2 x49-1/8 x 90-1/2
Net Weight (lbs.)1,408
Gross Weight (lbs.)1,584
