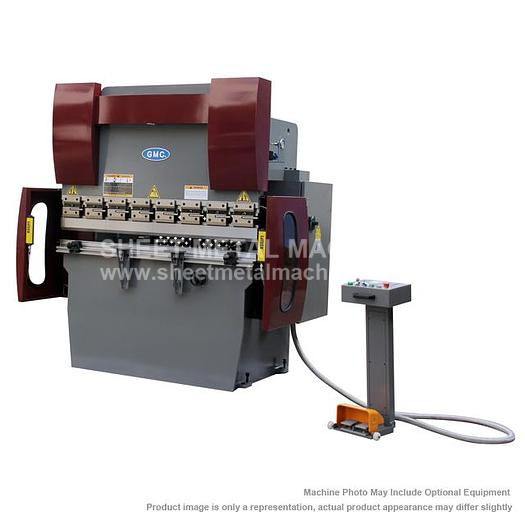

GMC 33 Ton x 5' Hydraulic Press Brake HPB-3305CNC

GMC 33 Ton x 5' Hydraulic Press Brake HPB-3305CNC
$23,850 FREE SHIPPING - CALL FOR AVAILABILITY
Description
Please note: many products ship straight from manufacturer
GMC 33 Ton x 5' Hydraulic Press Brake HPB-3305CNC
- ISO 9001 certified
- Meet OSHA and CE safety standard
- Easy-to-use programmable Estun E21 control
- Easy programming, stores 40 programs
- Estun E21 control keep a pice count for large production run
- Japan Yaskawa drive
- Precision ball screws for 24” back gauge
- Germany Rexroth hydraulic system
- Schneider electrical components
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with E21 screen, control panel and E-stop switch
- Safety 24V low voltage & overload protection
- Note: Warranty for Rotary Phase Convertor Users: Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only
STANDARD EQUIPMENT:
- Estun E21, 2 Axis Controller
- ( 2 ) 24” front support arms
- Quick release segmented ( American Style Tooling ) punch holder
- Full Length Gooseneck Punch HRC 50 Full Length Vee Die with 6 assorted sizes HRC 50,1”,3/4”,5/8”, ½”, 3/8”, ¼”
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with E21 screen, control panel ,and E-stop meet OSHA safety standard
OPTIONAL ITEMS:
- Custom Tooling, Made in the USA - CALL FOR QUOTE
- On Site Training: $4,995.00
- Online FaceTime or Video Chat Training: $595.00 includes 2 hours of FaceTime or Google Duo Live Video Training And (1) 30 minute follow after training of needed for additional support We will provide follow up Support Video
- Available Step Down Transformers: 440V-480V to either 208V or 230V - Call for Price
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | GMC Machine Tools |
Model | HPB-3305CNC |
Condition | New |
Stock Number | HPB-3305CNC |
Maximum Pressure | 33 Tons |
Bending length capacity | 63" (5'3") |
Distance between uprights (housing) | 51" |
Ram Stroke travel | 4" |
Cylinder travel adjustment, max | 2" |
Table Width | 6" |
Distance between table and ram | 13-1/4" |
Throat Depth: | 8" |
Back Gauge Distance | 21" |
Back Gauge Repeatability | .008" |
Y Axis Repeatability | .008" |
Approach speed, inch / second | 3.5" |
Working speed , inch / second | 0.39" |
Return speed , inch / second | 2.75 |
Main Motor | 7-1/2 HP 208V or 220V, 3phase (please specify) |
Servo motor for back gauge | 1/2 HP, 220V or 208V, 3-phase |
Servo motor for bending angle setting | 1/2 HP, 220V or 208V, 3-phase |
Hydraulic Oil Tank Capacity | 25 Gal. |
Machine Weight | 5,350 lbs. |
Machine size, L x W x H | 91" x 56" x 87” |
