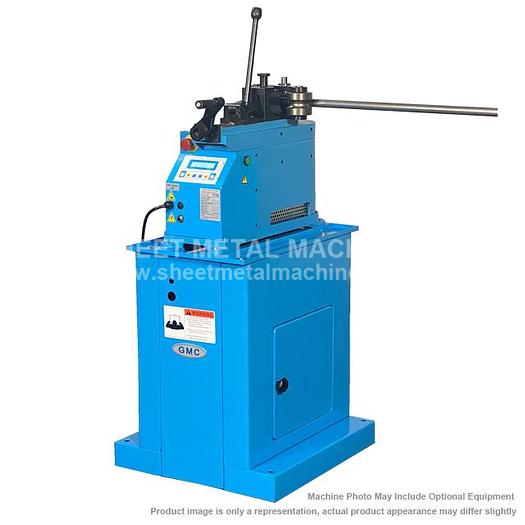

GMC Draw Bender DB-60A

GMC Draw Bender DB-60A

$6,350 CALL FOR AVAILABLITY

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

GMC 2" Draw Bender DB-60A

  • Taiwan Machine
  • ISO 9001 certified
  • This easy to use hydraulic tube draw bender has an incredible capacity of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe
  • 1-1/2 HP Heavy Duty AC main motor, 220V, 1 phase
  • LED degree indicator with automatic stop programming, to get as true reading of bending degree.
  • 50 jobs memory, each job program contains 9 steps
  • Quick tooling changes
  • With deluxe stand


OPTIONAL ITEMS:

DB-60A-1T: 1” Tube die set $495.00

DB-60A-114T: 1-1/4” Tube die set $795.00

DB-60A-112T: 1-1/2” Tube die set $795.00

DB-60A-2T: 2” Tube die set $1,395.00

DB-60A-1P: 1” Pipe die set $495.00

DB-60A-114P: 1-1/4” Pipe die set $795.00

DB-60A-112P: 1-1/2” Pipe die set $795.00


Specifications

ManufacturerGMC Machine Tools
ModelDB-60A
ConditionNew
Stock NumberDB-60A
Capacity - Minimum CLR1/2"
Capacity - Minimum OD1/4"
Capacity - Solid Rod, mild steel1"
Capacity - Round Tube, mild steel (wall thickness)2” (.125”)
Capacity - Round Pipe, mild steel, schedule 401-1/2"
Capacity - Round Tube, SS steel (wall thickness)1-1/2” (.125”)
Capacity - Round Pipe, SS steel, schedule 401-1/4"
Capacity - Aluminum round Tube (wall thickness)2” (3/16”)
Maximum centerline Radius8-1/2"
LED programming50 job memory
Main Motor1.5 HP, 220V, 1phase
Machine dimensions27" x 9" x 51"
Weight327 lbs.
