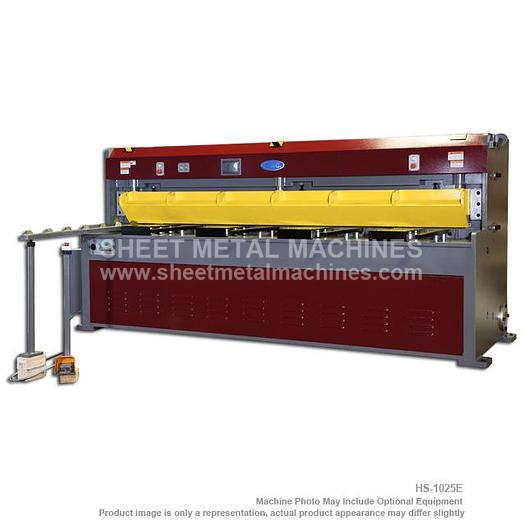

GMC Hydraulic Shear with 36" Power Back Gauge HS-0825E
Sale

GMC Hydraulic Shear with 36" Power Back Gauge HS-0825E
$34,850 GMC SPECIALS - REDUCED PRICES AND FREE SHIPPING ON SELECT SHEARS, BRAKES AND LATHES - WHILE SUPPLIES LAST
Description
Please note: many products ship straight from manufacturer GMC 8' x 1/4" Heavy Duty Hydraulic Shear HS-0825E
- ISO 9001 certified
- 36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
- Quick Change Blade Gap Adjustment (BGA), with gap dial
- CE standard “OMERO” electric control system
- Meet OSHA safety standard code
- Shadow line for accurate straight cutting
- Adjustable cutting length and stroke
- Ball transfer plates on worktable for easy loading workpiece
- Well balanced and sturdy all steel machine frame
- German made Hydraulic logic system centrally located and quiet
- Hydraulic hold-downs with anti-mar neoprene
- Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length viewable safety finger guard to protect operator from cutting hazard
- Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
- Hydraulic, electrical overload protection
- Compact operator control panel
- All motors are overload protected & low voltage control system
- Jog or continuous auto cycle cutting operation modes
STANDARD EQUIPMENT
- 36” German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004” inch/metric digital display.
- 1 each 60” squaring arm with inlaid inch/metric dual scale
- Quick change blade gap adjustment (BGA) with gap dial
- Shadow line for accurate straight cutting
- Material support and drop back chuter
- Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
- 2 each 24” front support arms
- Hydraulic hold-downs with anti-mar neoprene
- Full length viewable finger guard
- Removable safety foot pedal
- Tool box
OPTIONAL ITEMS: CALL FOR PRICE Safety fence for enclosure of the back side of the machine: $CALL
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
Manufacturer | GMC Machine Tools |
Model | HS-0825E |
Condition | New |
Stock Number | HS-0825E |
Cutting capacity: mild steel, stainless steel | 8 x 1/4", 8' x 10 ga. |
Blade length | 8' 2" |
Strokes per minute | 10-15 |
Worktable height | 34-1/2" |
Front support arm | 24" |
Back gauge for E model | 36” German SIKO Power Back gauge |
Blade rake angle | 2 degree |
Oil tank cap. | 45 Gal. |
Main motor | 20HP, 220V / 440V , 3 phase |
Motor for power back gauge | 1HP, 220V/440V, 3 phase |
Machine weight | 12,850 lbs. |
Machine dimensions | 157” x 99” x 65” |
