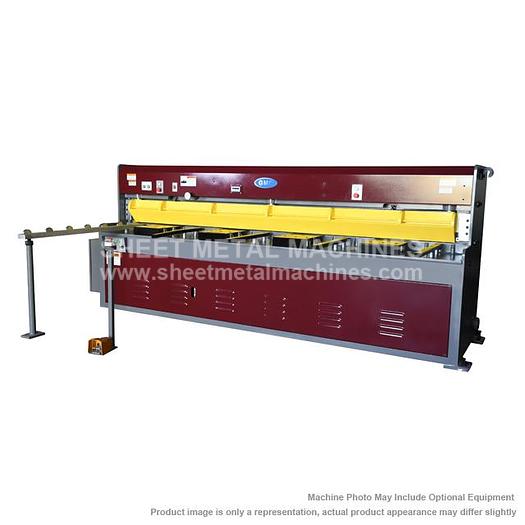

GMC Heavy Duty Hydraulic Shear with Power Back Gauge HS-1010E

GMC Heavy Duty Hydraulic Shear with Power Back Gauge HS-1010E

$32,850 SPECIAL PRICE + FREE SHIPPING!

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer GMC 10' x 10ga Heavy Duty Hydraulic Shear with 36” Power Back Gauge: HS-1010E

  • ISO 9001 certified
  • Taiwan machines
  • HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
  • Quick Change Blade Gap Adjustment (BGA), with gap dial
  • Shadow line for accurate straight cutting
  • 60” squaring arm with inlaid inch/metric dual scale
  • CE standard “OMERO” electric control system
  • Meet OSHA safety standard code
  • Adjustable cutting length and stroke
  • Ball transfer plates on worktable for easy loading workpiece
  • Well balanced and sturdy all steel machine frame
  • German made Hydraulic logic system centrally located and quiet
  • Hydraulic hold-downs with anti-mar neoprene
  • Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
  • Full length viewable safety finger guard to protect operator from cutting hazard
  • Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
  • Hydraulic, electrical overload protection
  • Compact operator control panel
  • All motors are overload protected & low voltage control system
  • Jog or continuous auto cycle cutting operation modes


EQUIPPED WITH:

  • HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro adjustment 0.004” , inch/mm digital display
  • 1 each 60” squaring arm with inlaid inch/metric dual scale
  • Quick change blade gap adjustment (BGA)
  • Shadow line for accurate straight cutting
  • Material support and drop back chuter
  • Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
  • 2 each 24” front support arms
  • Hydraulic hold-downs with anti-mar neoprene
  • Full length viewable finger guard
  • Removable safety foot pedal
  • Tool box


OPTIONAL ITEMS: CALL FOR PRICE Safety fence for enclosure of the back side of the machine

Specifications

ManufacturerGMC Machine Tools
ModelHS-1010E
ConditionNew
Stock NumberHS-1010E
Cutting capacity: mild steel10' x 10 Ga
Cutting capacity: stainless steel10' x 14 Ga
Blade length10'
Strokes per minute adjustable10-15
Throat Depth18"
Worktable height34-1/2"
Front support arm length24"
Main motor10 HP, 220V, 3-phase
Back gauge for E model36” Power BG
Power B.G. motor1 HP
Blade rake angle2 degree
Oil tank cap.45 Gal.
Machine Dimensions178” x 95” x 65”
Machine weight12,850 lbs
