SAWTRAX Classic Series Vertical Panel Saws

SAWTRAX Classic Series Vertical Panel Saws

$1,994.05

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

SAWTRAX Classic Series 52" - 76" Vertical Panel Saw

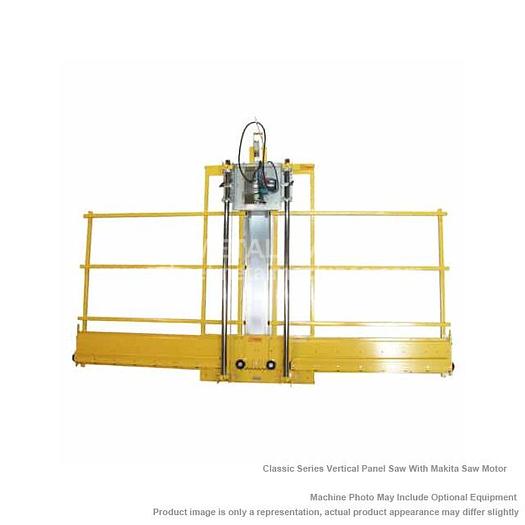

  • Classic Series Vertical Panel Saw With Makita Saw Motor
  • The choice for people who know what they want like a smooth and accurate carriage using sealed bearings and a powerful Makita saw motor.
  • The Classic Series was developed as a lower price point panel saw for an apples-to-apples comparison with the bare bones panel saws that are on the market. They have identical accessories and price points. The differences are the standard features that come with each panel saw. When these are compared, we feel there is "still no comparison" and your choice will be the Saw Trax Machine.
  • Accessories can be purchased as needed instead of the bundled accessory packages we offer in other models. This is the choice of the user who knows what he wants and not what we think he should have. Models come in Compact frames with 52" and 64" cross cuts and Full Size frames with 52", 64" and 76" cross cuts. All models use the Makita 5007F saw.
  • Cut Accuracy of 1/64"
  • Frame never goes out of square
  • Smooth repetitive carriage movement
  • Ten second tool swap
  • Minimal set up time
  • Rip cut in either direction
  • Saw cover blade window with light


STANDARD EQUIPMENT:

  • Nickel Chrome Plated Guide Tubes
  • Accu-Square Alignment System
  • Accu-Glide Sealed Bearing System
  • Accu-Fence Material Roller System (Full Size Only)
  • Quick Release Carriage with 2 Locks
  • Retraction Mechanism
  • Powder Coated Steel Frame
  • Cord Holder
  • Center Material Support
  • Side stand legs (full size only)


OPTIONAL ITEMS:

  • Floating Router Insert Plate
  • OLFA Pivoting Knife Insert Plate
  • Spring Hold Down
  • ACM Rolling Shear Insert Plate
  • Sheet Clamp
  • Full Builder’s Extensions
  • Coiled Extension Cord
  • Full Mid-Fence
  • Frame Dust Collection
  • Laser Guide
  • Flip Stop System
  • Folding Stop system
  • Folding Stand
  • Transport Wheels
  • Dust Hose
  • Dust Containment Brush
  • Steel Sleeved Material Rollers
  • Stop block with bar for cutting strips
  • Wall Mounting Kit


OPTIONAL MODELS:

  • C52C: 52" Cross Cut - Compact $1,994.05
  • C64C: 64" Cross Cut - Compact $2,089.05
  • FS52C: 52" Cross Cut - Full Size $2,930.75
  • FS64C: 64" Cross Cut - Full Size $3,077.05
  • FS76C: 76" Cross Cut - Full Size $3,380.10


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts


Specifications

ManufacturerSaw Trax
ModelClassic
ConditionNew
Stock NumberC52C
Material Rollers - Plastic10" (C52C) / 18" (C64C)
Maximum Cross Cut52" (C52C/FS52C) / 64" (C64C/FS64C) / 76" (FS76C)
Maximum Rip CutUnlimited
Maximum Cut Thickness1-3/4"
Saw Blade Diameter7-1/4"
Arbor Diameter5/8"
Saw Motor, Makita 5007F15 amp-120V
Frame Height (set up)78" (C52C/FS52C) / 90" (C64C/FS64C) / 102" (FS76C)
Frame Width (set up)65-1/4" (C52C/C64C) / 122" (FS52C/FS64C/FS76C)
Frame Depth-No Stand, measured with SawNo Stand Included
Frame Depth-Stand openNo Wheels Included
Shipping Weight276 lbs. (C52C) / 296 lbs. (C64C) / 370 lbs. (FS52C) / 396 lbs. (FS64C) / 412 lbs. (FS76C)
