SAWTRAX Varsity Series Vertical Panel Saws

SAWTRAX Varsity Series Vertical Panel Saws

$2,659.05

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

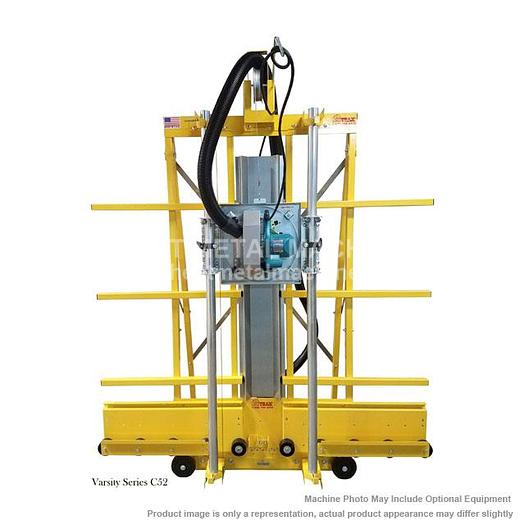

SAWTRAX Varsity Series 52" - 64" Vertical Panel Saws

  • Varsity Series Vertical Panel Saw with Makita Saw Motor
  • Ideal for Shops with Limited Space, Job Sites, Limited Budgets, or Crating. The Makita 5007F saw uses 7.25" standard blades and the Sealed Steel Bearings on the carriage provide the most Accurate and Smooth saw carriage in the industry
  • The Varsity Series Vertical Panel Saws are for customers that need the cutting capability and precision of a full size panel saw but are limited by space, need portability, or have limited budgets. Because of the easy-to-use folding stand and frame wheels, this machine is very easy to move. It is ideal for job site use or in cramped spaces. When needing a vertical panel saw to precision cut sheets up to 1¾ inches thick and space, portability, or budgets are an important issue, the Compact frame is the perfect answer.
  • Cut Accuracy of 1/64”
  • Frame Never Goes Out of Square
  • Smooth Repetitive Carriage Movement
  • Ten Second Tool Swap
  • Mobility with Folding Stand and Wheels
  • Outstanding Dust Evacuation System
  • Minimal Set Up Time
  • Rip Cut in Either Direction
  • Utilize Stop Block on Left or Right
  • Saw Cover Blade Window with Light


STANDARD EQUIPMENT:

  • Nickel Chrome Plated Guide Tubes (Zinc plated guide tubes 88"/100")
  • Accu-Square Alignment System
  • Accu-Glide Sealed Bearing System
  • Quick Release Carriage with 2 Locks
  • Retraction Mechanism
  • Powder Coated Steel Frame
  • Cord Holder
  • Center Material Support


OPTIONAL ITEMS:

  • Floating Router Insert Plate
  • OLFA Pivoting Knife Insert Plate
  • Spring Hold Down
  • ACM Rolling Shear Insert Plate
  • Sheet Clamp
  • Full Builder’s Extensions
  • Coiled Extension Cord
  • Full Mid-Fence
  • Frame Dust Collection
  • Laser Guide
  • Flip Stop System


OPTIONAL MODELS:

  • C52VP: 52" Cross Cut - Compact $2,659.05
  • C64VP: 64" Cross Cut - Compact $2,858.55


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts


Specifications

ManufacturerSaw Trax
ModelVarsity
ConditionNew
Stock NumberC52VP
Material Rollers - Plastic10 (C52VP) / 18 (C64VP)
Maximum Cross Cut52" (C52VP) / 64" (C64VP)
Maximum Rip CutUnlimited
Maximum Cut Thickness1-3/4"
Saw Blade Diameter7-1/4"
Arbor Diameter5/8"
Saw Motor, Makita 5007F15 amp - 120V
Frame Height (set up)78" (C52VP) / 90" (C64VP)
Frame Width (set up)65-1/4"
Frame Depth-Stand closed with Saw15"
Frame Depth-Stand open40"
Shipping Weight337 lbs. (C52VP) / 357 lbs. (C64VP)
