SAWTRAX 3000 Series Vertical Panel Saws

SAWTRAX 3000 Series Vertical Panel Saws

$4,986.55

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

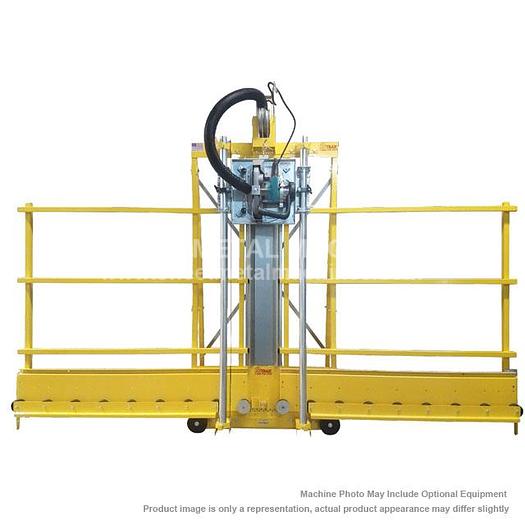

SAWTRAX 3000 Series 50" - 74" Vertical Panel Saws

  • The 3000 Series panel saw would be recommended for door manufacturers or custom woodworking shops that want to take advantage of using a 10" saw blade.
  • The saw is designed for cutting thicker material, up to 2-1/2", or making finer cuts on material like Melamine.
  • Steel sleeves are used to cover the material rollers, like a knight's armor, preventing damage to the rollers themselves. The dust collection system uses a dust brush that contains the sawdust, allowing the larger diameter dust hose to remove it.
  • The Folding Stand is as easy to open & close as a ladder, yet provides complete stability while in operation. For portability and mobility. Transport wheels are included.
  • Cut Accuracy of 1/64”
  • Frame Never Goes Out of Square
  • Smooth Repetitive Carriage Movement
  • Ten Second Tool Swap
  • Mobility with Folding Stand and Wheels
  • Outstanding Dust Evacuation System
  • Minimal Set Up Time
  • Rip Cut in Either Direction
  • Utilize Stop Block on Left or Right
  • Makita HS0600 Saw on Spinning Saw Insert Plate
  • Standard 10” Saw Blade
  • Dual Rip Gauges for Left or Right Rip Cuts
  • Stop Block with Bar for Cutting Strips
  • Dust Hose and Dust Containment Brush
  • Folding Stand and Transport Wheels
  • Horizontal Measuring Tapes
  • Vertical Measuring Tape
  • Side Stand Legs
  • Steel Sleeved Material Rollers
  • MADE IN USA


STANDARD EQUIPMENT:

  • Nickel Chrome Plated Guide Tubes
  • Accu-Square Alignment System
  • Accu-Glide Sealed Bearing System
  • Accu-Fence Material Roller System
  • Quick Release Carriage with 2 Locks
  • Two Spool Retraction Mechanism
  • Powder Coated Steel Frame
  • Cord Holder
  • Center Material Support


PACKAGE INCLUDES:

  • Makita 10" Saw
  • Spinning saw insert plate
  • Dust hood and hose
  • Dust containment brush
  • Folding stand
  • Steel sleeved material rollers
  • Dual rip gauges
  • Stop block with bar
  • Two measuring tapes
  • Transport wheels


OPTIONAL MODELS:

  • 3050: 50" Cross Cut - Full Size $4,986.55
  • 3062: 62" Cross Cut - Full Size $5,186.05
  • 3074: 74" Cross Cut - Full Size $5,385.55


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts


Specifications

ManufacturerSaw Trax
Model3000
ConditionNew
Stock Number3050
Material Rollers - Plastic18"
Maximum Cross Cut50" (3050) / 62" (3062) / 74" (3074)
Maximum Rip CutUnlimited
Maximum Cut Thickness2-1/2"
Saw Blade Diameter10"
Arbor Diameter5/8"
Saw Motor, Makita 5007F15 amp - 120V
Frame Height (set up)78" (3050) / 90" (3062) / 102" (3074)
Frame Width (set up)122"
Frame Depth-Stand closed with Saw18"
Frame Depth-Stand open40"
Shipping Weight445 lbs. (3050) / 485 lbs. (3062) / 495 lbs. (3074)
