SAWTRAX 1000 Series Vertical Panel Saws

SAWTRAX 1000 Series Vertical Panel Saws

$3,419.05

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

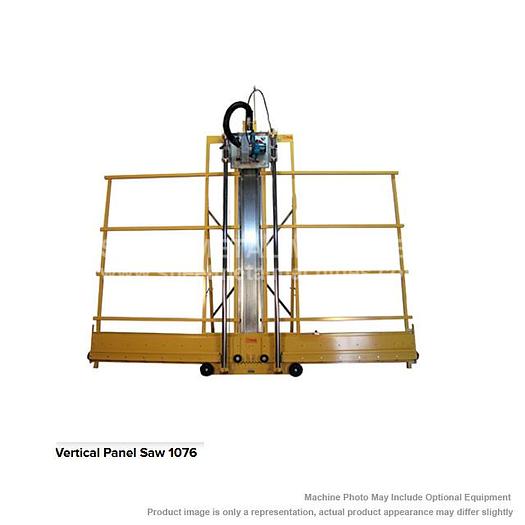

SAWTRAX 1000 Series 52" - 100" Vertical Panel Saws

  • Saw Trax 1000 Series Vertical Panel Saw With Makita Saw Motor
  • A Full Size Panel Saw for Woodworking and Cabinet Making using a Makita saw motor
  • The 1000 Series Vertical Panel Saw is for woodworkers, cabinet makers and other customers that need a vertical panel saw to precision cut sheets up to 1-3/4 inches thick. The industrial Makita 5007 saw motor uses standard 7.25" saw blades and sealed bearings on their carriage for the most accurate and smooth carriage action in the industry.
  • This Vertical Panel Saw offers the precision, accuracy, ease of use and safety that sets Saw Trax panel saws apart. Features like real steel bearings on the carriage, a patented alignment system that never goes out of square, a dust collection system that actually collects the saw dust, a “quick change” carriage that allows you to use other cutting tools and selected options to provide you the equipment that most woodworkers request. Options like a pre-attached folding stand, wheels for the frame, vertical tapes with rip pointers, two horizontal tapes with a stop and stop extension bar, a saw blade shroud brush, a 12′ by 2.5″ dust hose with coupler for use with a vacuum and a spinning saw insert with attached 15 amp. Makita 5007F saw.
  • Cut Accuracy of 1/64”
  • Zinc plated guide tubes 88"/100"
  • Frame Never Goes Out of Square
  • Smooth Repetitive Carriage Movement
  • Ten Second Tool Swap
  • Mobility with Folding Stand and Wheels
  • Outstanding Dust Evacuation System
  • Minimal Set Up Time
  • Rip Cut in Either Direction
  • Utilize Stop Block on Left or Right
  • Saw Cover Blade Window with Light


OPTIONAL ITEMS:

  • Floating Router Insert Plate
  • OLFA Pivoting Knife Insert Plate
  • Spring Hold Down
  • ACM Rolling Shear Insert Plate
  • Sheet Clamp
  • Full Builder’s Extensions
  • Coiled Extension Cord
  • Full Mid-Fence
  • Frame Dust Collection
  • Laser Guide
  • Flip Stop System


OPTIONAL MODELS:

  • 1052: 52" Cross Cut - Full Size: $3,419.05
  • 1064: 64" Cross Cut - Full Size: $3,618.55
  • 1076: 76" Cross Cut - Full Size: $3,818.05
  • 1088: 88" Cross Cut - Full Size: $4,692.05
  • 10100: 100" Cross Cut - Full Size: $4,986.55


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts


Specifications

ManufacturerSaw Trax
Model1000
ConditionNew
Stock Number1052
Material Rollers - Plastic18
Maximum Cross Cut52" (1052) / 64" (1064) / 76" (1076) / 88" (1088) / 100" (10100)
Maximum Rip CutUnlimited
Maximum Cut Thickness1-3/4"
Saw Blade Diameter7-1/4"
Arbor Diameter5/8"
Saw Motor, Makita 5007F15 amp - 120V
Frame Height (set up)78" (1052) / 90" (1064) / 102" (1076) / 114" (1088) / 126" (10100)
Frame Width (set up)122"
Frame Depth-Stand closed with Saw15"
Frame Depth-Stand open40"
Shipping Weight410 lbs. (1052) / 450 lbs. (1064) / 460 lbs. (1076) / 555 lbs. (1088) / 655 lbs. (10100)
