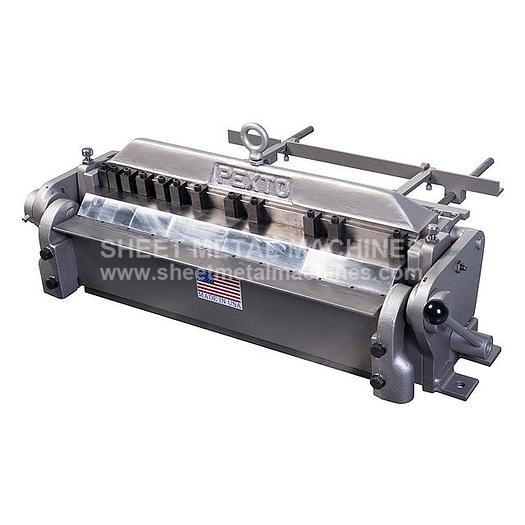

ROPER WHITNEY Box & Pan Brake NO. PX24

ROPER WHITNEY Box & Pan Brake NO. PX24

$4,750

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

ROPER WHITNEY 2' x 16 ga. Box & Pan Brake NO. PX24

PART# 155070024

  • The PX24 light duty bending brake is for light forming requirements (up to 16 gauge mild steel). When used within their rated capacity, they will form a minimum 1/2″ flange over their entire length. Maximum Rated Capacity: 16 gauge mild steel. The PX24 Box and Pan Brakes adjustable back gauge are ideal for small, precise box and pan work (up to 3″ deep). It will accommodate sheet metal up to 16 gauge. The PX24 will bend as much as a 135? angle in up to a 24-inch length. Standard fingers provided include one each 3/4″, 1″, 1 1/4″, 1 1/2″, 3″, 4 1/2″, and 6″. Fingers are heat-treated die steel, precision ground. Set of fingers can be arranged to form 3/4: to 24″ in 1/4″ increments. Back gauge adjustment is from 0-24″. Adjustable friction brake lock stops upper bar dead-weight drop and permits precise positioning of upper bar to scribed line on work piece before final clamping. The pan brakes have optional special fingers to adapt them to inside mitered lip boxes, 9″ long square tubes and radius bends up to 1″. The floor mount stand shown must be ordered as a separate item. Minimum 1/4″ (PX24) reverse bends are possible with these light duty brakes by removing both the apron angle iron work support and apron filler plate and reducing the capacity by four gauges.
  • MADE IN USA


STANDARD EQUIPMENT:

  • 3/4", 1", 1-1/4", 1-1/2", 3", 4-1/2" and two 6" box fingers.


OPTIONAL ITEMS:

  • 239006006K - No. PX24 Heavy Duty Welded Floor Mount Stand: $567
  • 251700110K - 3/4" Standard Replacement Finger: $150
  • 251700111K - 1" Standard Replacement Finger: $150
  • 251700112K - 1/4" Standard Replacement Finger: $163
  • 251700113K - 1/2" Standard Replacement Finger: $163
  • 251700114K - 3" Standard Replacement Finger: $234
  • 251700115K - 4-1/2" Standard Replacement Finger: $303
  • 251700116K - 6" Standard Replacement Finger: $354
  • 251700107 - Extension Finger - Right
  • 251700108 - Extension Finger - Left
  • Radii Fingers
  • 251700109 - Open End Finger
  • Extension Fingers for inside mitered lip boxes, minimum 2-1/2" square box.
  • Radii Fingers Available in widths of 3/4", 1", 1-1/4", 1-1/2", 3", 4-1/2", and 6"
  • with radii of 1/16", 1/8", 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 3/4", and 1".
  • Open End Finger for square tubes up to 9" long. Taper from 3/4" to 1-1/2".


Specifications are subject to change without notice.

*Only 20° when box fingers are used.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR – Limited

Note: Consumable tooling is not covered under the 3 year manufacturer’s warranty.

Specifications

ModelPX24
ConditionNew
Stock Number155070024
Capacity Mild Steel - Bending bar and angle in place16 ga.
Capacity Mild Steel - Bending bar and angle removed20 ga.
Bending Length24"
Minimum reverse bend (bar and angle removed)1/4"
Max. lift of beam1"
Finger widths3/4", 1", 1-1/2", 1-3/4", 3", 4-1/2", and 6"
Maximum depth of box3"
Back gauge adjustment0-24"
Dimensions38" x 15" x 15"
Weight270 lbs.
