ROPER WHITNEY Connecticut Straight Bending Brake 1018

ROPER WHITNEY Connecticut Straight Bending Brake 1018
$6,595
Description
Please note: many products ship straight from manufacturer ERCOLINA

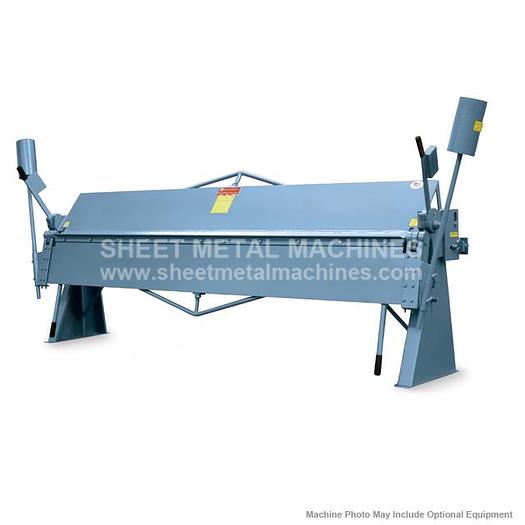

ROPER WHITNEY 10' x 18 ga. Connecticut Straight Bending Brake 1018
PART# 157101018
- Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities. All Connecticut bending brakes have positive clamping pressure adjustment, apron stop rods for repeat bends, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, Improved leg design for lighter weight, all steel construction – no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and a positive rear material gauge adjustment. Connecticut Series hand brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service. This machine has a bending capacity of 18 gauge up to 10 feet long.
- MADE IN USA
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Limited
Note: Consumable tooling is not covered under the 3 year manufacturer’s warranty.
Specifications
Manufacturer | Roper Whitney |
Model | 1018 |
Condition | New |
Stock Number | 157101018 |
Length of bed | 121" |
Capacity on mild steel, 1" flange With bending bar and angle in place | 18 ga. |
With bending angle removed | 22 ga. |
With bending bar and angle removed | 26 ga. |
Minimum reverse bend (bar and angle removed) | 1/4" |
Maximum lift of beam | 2-1/4" |
Front to rear adjustment of beam | 1-1/8" |
Shipping Weight | 2,200 lbs. |
