NATIONAL Heavy Duty Box & Pan Brake U6-12016

NATIONAL Heavy Duty Box & Pan Brake U6-12016

$8,525

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

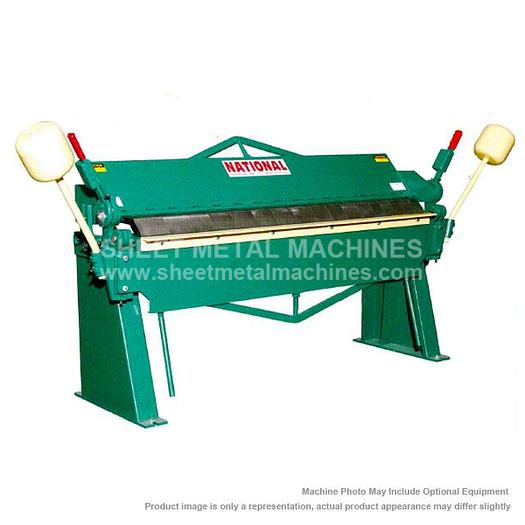

NATIONAL 10' (120") x 16 ga Heavy Duty Box & Pan Brake U6-12016

  • National offers four heavy duty box and pan brakes made in the U.S.A. Standard with heavy body construction, precision bearings on the apron, two large cast iron counterweights and apron stop for repeat bends. The National name means quality.
  • Section fingers are precision machined from rolled steel bar stock for maximum strength. The fingers can be adjusted or removed quickly by the loosening of a cap screw. Heavy duty steel plates and tension bars are precision incorporated for minimum deflection.
  • LIFETIME WARRANTY AGAINST BREAKAGE ON ALL STEEL MACHINES
  • MADE IN USA


*Yield Strength 30,000 lbs. @ rated capacity

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR

Specifications

ManufacturerNational
ModelU6-12016
ConditionNew
Stock NumberU6-12016
Capacity - Mild Steel16 Gauge (1.6mm)
Capacity - Stainless Steel20 Ga (.9mm)
Maximum Depth of Box6”/152mm
Bending Length121”/3073mm
Floor Space w/ counterweight177” x 29” x 59”
Shipping Weight3,200 lbs (1452 kgs)
