NATIONAL Box & Pan Brake U9616

NATIONAL Box & Pan Brake U9616

$6,187.50

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

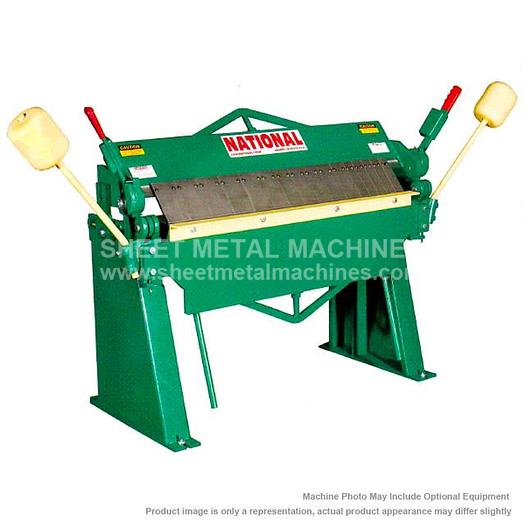

NATIONAL 8' (96") x 16 ga Box & Pan Brake U9616

  • National has four popular floor model box and pan brakes designed to be easy and simple to operate. Standard with 2”, 3” and 4” finger widths, stop rods for repeat bends, two large counterweights, and precision bearings on the apron. All steel body construction with extra heavy tie rods for minimum deflection.
  • LIFETIME WARRANTY AGAINST BREAKAGE ON ALL STEEL MACHINES
  • MADE IN USA


*Yield Strength 30,000 lbs. @ rated capacity

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR

Specifications

ManufacturerNational
ModelU9616
ConditionNew
Stock NumberU9616
Capacity - Mild Steel16 Gauge (1.6mm)
Capacity - Stainless Steel20 Ga (.9mm)
Finger Width2” 3” 4” (51mm 76mm 102mm)
Maximum Depth of Box4”/102mm
Bending Length97”/2464mm
Floor Space w/ counterweight143” x 27” x 55”
Shipping Weight2,200 lbs (998kgs)
