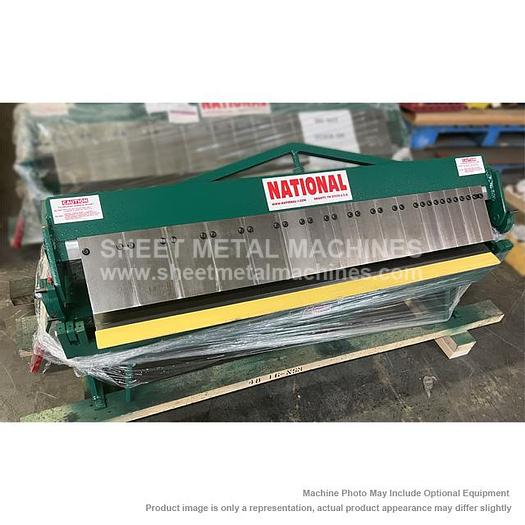

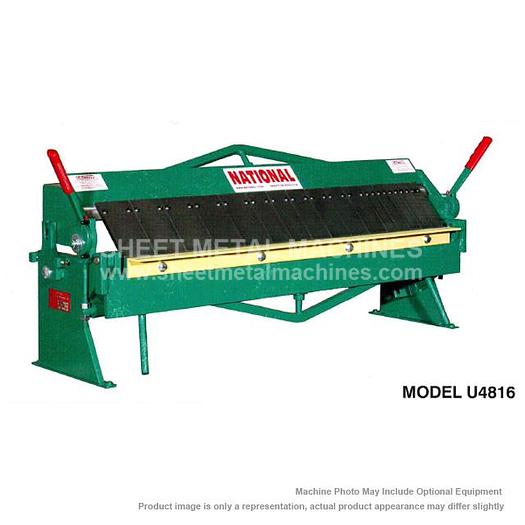

NATIONAL Bench Box & Pan Brake U4816

NATIONAL Bench Box & Pan Brake U4816

$1,518

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer NATIONAL 48" x 16 ga Bench Box & Pan Brake U4816

  • Simplicity of design allows these brakes to work in the most direct fashion. Easy to set up and operate. Body sections are welded steel plates, with heavy truss rods and braces for longer life and greater strength. These brakes are standard with extension handles, apron stop for repeat bends, and replaceable bushings at points of wear.
  • LIFETIME WARRANTY AGAINST BREAKAGE ON ALL STEEL MACHINES
  • MADE IN USA


OPTIONAL ITEMS:

NS48 - Stand for Bench Brakes: $264.00


*Yield Strength 30,000 lbs. @ rated capacity

Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 3 YEAR

Specifications

ManufacturerNational
ModelU4816
ConditionNew
Stock NumberU4816
Capacity - Mild Steel16 Gauge / 1.6mm
Stainless Steel20 Gauge / .9mm
Maximum Lift of Beam1-1/4”/32mm
Finger Width2” 3” 4” (51mm 76mm 102mm)
Maximum Depth of Box4”/102mm
Bending Length48-1/4”/1226mm
Floor Space67" x 38" x 54" (1689 x 965 x 1372mm)
Shipping Weight500 lbs/227kgs
