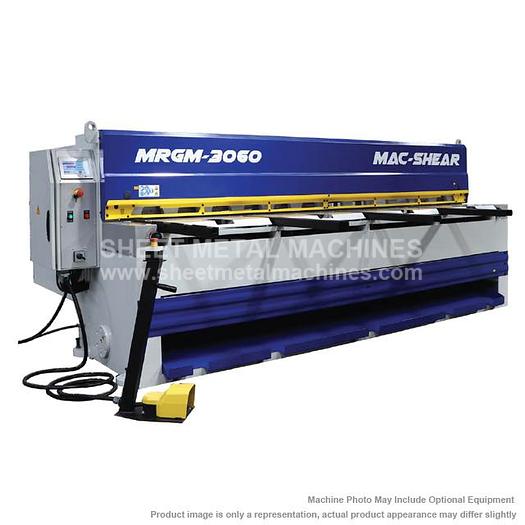

MAC-SHEAR Direct Gear Motorized Guillotine Shear MRGM 3060

MAC-SHEAR Direct Gear Motorized Guillotine Shear MRGM 3060

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

MAC-SHEAR 10' x 14 ga. Direct Gear Motorized Guillotine Shear MRGM 3060

  • Mac-Shear machines are built with welded steel construction, high carbon/high chrome, two-edged top, four edged bottom cutting blades. The cutting beam shield slides open and closed with ease, has durable Teflon slideways, with easy maintenance clutch system and they have an easy blade gap adjustment in front. With
  • superior craftsmanship, it’s ideal for any fab shop floor with any shearing needs.
  • Ball transfer table
  • Front blade gap adjustment
  • Cutting line illumination and shadow wire
  • Cutting mode changeover
  • Single cut, continuous cut, adjustment mode, front support
  • Arms, squaring arm with Tee slot and ruler
  • Front support arms
  • Squaring arm with tee slote and ruler
  • Finger protection cover
  • Foot pedal with emergency stop
  • 1 Year parts and complex labor warranty (against manufacturer defect that cannot be resolved remotely)


STANDARD EQUIPMENT:

  • Rear return pneumatic sheet support system
  • Ball transfer tables
  • Photocell safety barriers
  • 39" (1000mm) NC back-gauge
  • FUJI Touchscreen NC controller
  • Front/Rear return pneumatic sheet support system


OPTIONAL ITEMS - CALL FOR PRICE

  • Dual Voltage
  • Shear angle devise
  • Upgrade to 3mm capacity
  • Upgrade to 4mm capacity
  • Additional set of shear blades
  • Additional set of shear blades for stainless steel
  • Set up and training (travel and expenses billed as actual)


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts



Specifications

ManufacturerMAC-SHEAR
ModelMRGM 3060
ConditionNew
Stock NumberMRGM 3060
Cutting Capacity - Mild Steel10 ft x 14 gauge
NC Controlled back gauge39"
Steel cutting capacity0.078”
Max shearing length120.4"
Strokes per minute41
Motor Power10 HP
Electrics220V 3ph/60Hz/3 Phase (optional 440V)
Table height31.4"
Read gauge distance39
Dimensions148.4" x 88.5" x 55.1"
Machine weight8,818 lbs. (4000 kg)
