ERBEND 10' x 14 ga. CNC Folder MFB 3220

ERBEND 10' x 14 ga. CNC Folder MFB 3220

Contact us for price

orCall 386-304-3720

Description

Please note: many products ship straight from manufacturer

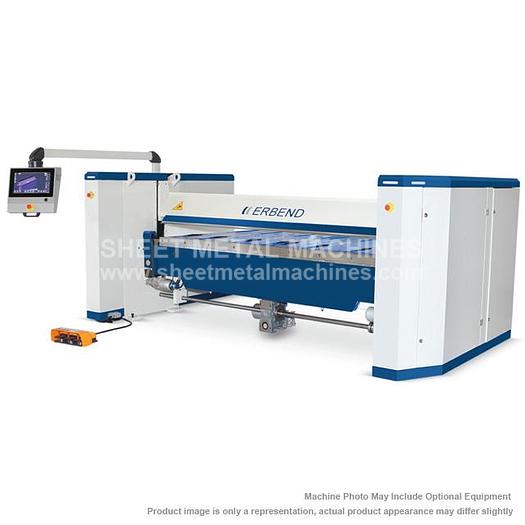

ERBEND 10' x 14 ga. CNC Folder MFB 3220

  • Erbend is a new option of sheet metal folding equipment to the metal fabrication marketplace in North America. These machines feature advanced technology, a sleek design and easy operation, making Erbend an incomparable folding machine.
  • AC motorized drive X,Y, Z (clamping, folding, back gauge)
  • 15.6” Touchscreen controller on swivel arm with ERFOLD BASIC CNC line by line and 2D software control
  • Flat rail bottom beam tool for feather groves
  • Clamping beam pen height 160mm
  • Manual folding beam adjustment (35mm) (A Axis)
  • 45 Deg. Clamping beam geometry with 30 Deg./R1 sharp nose clamping beam tools
  • Folding beam tools 2 sets: 15mm & 25mm
  • 1000mm motorized back gauge + sheet support table with ball casters
  • Front light barriers
  • LED Function Lights (red, green, and blue)
  • 3 switch foot pedal


OPTIONAL ITEMS - CALL FOR PRICE

  • Set up and training (2 days)
  • Manual mechanical crowning system
  • Motorized A-Axis (folding beam)
  • ERFOLD Advanced 3D graphical control
  • Advanced 3D offline for PC
  • 60mm - 30 Deg/R1 segmented goats foot tooling
  • 90mm - 30 Deg/R1 segmented goats foot tooling
  • 1500 motorized back gauge with arms and sheet support table with ball casters
  • 2000 motorized back gauge with arms and sheet support table with ball casters
  • L shaped backgauge (1m + 3m)
  • U shaped backgauge (3m + 1m + 3m)


Specifications are subject to change without notice.

NOTE: Data is provided by the manufacturer.

WARRANTY: 1 YEAR – Parts

Specifications

ManufacturerErbend
ModelMFB 3220
ConditionNew
Stock NumberMFB 3220
Max sheet length10.49 ft
Max Thickness Capacity Full Length2mm, 0.078" (14g) Steel
Mild sheet2mm, .078” (14g)
Stainless1.2mm, .047” (18g)
Aluminium3mm, .118” (11g)
CLAMPING BEAM (Z-AXIS): Drive Power (SEW AC Motor w/Encoder)2 HP
CLAMPING BEAM (Z-AXIS): Opening Height (No tools)6.3 in (160.02 mm)
CLAMPING BEAM (Z-AXIS): Clamping Speed2.36 in/sec
FOLDING BEAM (Y-AXIS): Drive Power (SEW AC Motor w/Encoder)4 HP
FOLDING BEAM (Y-AXIS): Folding Angle0 - 150°
FOLDING BEAM (Y-AXIS): Folding Speed65°/sec
FOLDING BEAM ADJUSTMENT (A-AXIS): Adjustment Height1.37” (35 mm)
FOLDING BEAM ADJUSTMENT (A-AXIS): AdjustmentManual
1M BACK GAUGE SYSTEM (X-AXIS): Drive Power (SEW AC Motor w/Encoder).53 HP
1M BACK GAUGE SYSTEM (X-AXIS): Speed9.8 in/sec
1M BACK GAUGE SYSTEM (X-AXIS): Min/Max Gauging0.078” / 39.37” (2 mm / 1000 mm)
CLAMPING BEAM ROTATION (C-AXIS): Rotational Speed20°/sec
Dimensions(W x L x H): 90.55” / 175.19” / 74.80"
Weight10,362 lbs.
