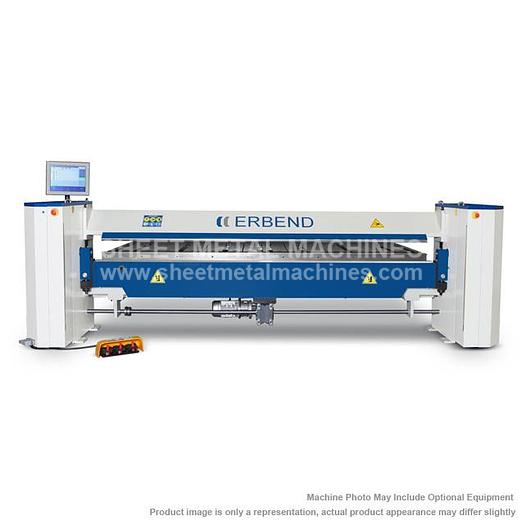

ERBEND 126" (10') x 16 ga. CNC Folder MFC 3215
Sale
ERBEND 126" (10') x 16 ga. CNC Folder MFC 3215
Contact us for price
Description
Please note: many products ship straight from manufacturer
ERBEND 126" (10') x 16 ga. CNC Folder MFC 3215
- Erbend is a new option of sheet metal folding equipment to the metal fabrication marketplace in North America. These machines feature advanced technology, a sleek design and easy operation, making Erbend an incomparable folding machine.
- Manual mechanical crowning system
- AC motorized drive X,Y, Z, C-Axis (clamping, folding, back gauge, clamp rotate)
- 15.6” Touchscreen ERFOLD BASIC CNC line by line and 2D software control
- Flat rail bottom beam tool for feather groves
- Clamping beam open height 160mm (without tools)
- 90mm high goats foot tools on station 1
- R1 or 20 deg. sharp nose clamping beam tools on station 2
- Folding beam tools 2 sets: 15mm & 25mm
- Manual folding beam adjustment 1.37” (35mm) (A-Axis)
- Front Horizontal light barriers
- LED Function Lights (red, green, and blue)
- 3 switch foot pedal
- *Price includes on site training for East Coast, Mid West, USA - West Coast, USA Add $2,500
- **Note: If you do not have 480V we can supply a step-up transformer at an additional cost. Please call or email for price
EQUIPPED WITH:
- ERFOLD Advanced 2D graphical control
- Manual mechanical crowning system
- 1000mm (36.37") motorized back gauge + sheet support table with ball casters
OPTIONAL ITEMS - CALL FOR PRICE
- On Site training included
- Motorized A-Axis (folding beam)
- ERFOLD Advanced 3D graphical control
- Advanced 3D offline for PC
- Advanced 3D offline for PC including step/IGS import function (3D control only)
- 1500 motorized back gauge with arms and sheet support table with ball casters
- 2000 motorized back gauge with arms and sheet support table with ball casters
- L shaped backgauge (1m + 3m)
- U shaped backgauge (3m + 1m + 3m)
- Brush table type upgrade
- Stainless table type upgrade
- (39") 1000mm Back Gauge
- (59") 1500mm Back Gauge
- L Shape Sheet Support
- U Shape Sheet Support
- Segmented goats foot tools (2"/60mm)
- Segmented goats foot tools (3.5"/90mm)
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR – Parts
Specifications
| Manufacturer | Erbend |
| Model | MFC 3215 |
| Condition | New |
| Stock Number | MFC 3215 |
| Max sheet length | 10.49 ft (126") |
| Max Thickness Capacity Full Length | 16g Steel |
| Mild sheet | 16 ga |
| Stainless | 20 ga |
| Aluminum | 14 ga (2mm) |
| CLAMPING BEAM (Z-AXIS): Drive Power (Sew AC motor w/encoder) | 1.1 HP |
| CLAMPING BEAM (Z-AXIS): Opening Height (No tools) | 4.72" (120mm) |
| CLAMPING BEAM (Z-AXIS): Clamping Speed | 2.75 in/sec |
| FOLDING BEAM (Y-AXIS): Drive Power (Sew AC motor w/encoder) | 2.2 HP |
| FOLDING BEAM (Y-AXIS): Folding Speed | 75°/sec |
| FOLDING BEAM (A-AXIS): Drive Power (Sew AC motor w/encoder) | 1.1 HP (400 watts) |
| FOLDING BEAM (A-AXIS): Adjustment Height | 1.38" (35mm) |
| BACKGAUGE SYSTEM (X-AXIS): Drive Power (Sew AC motor w/encoder) | 0.4 HP (400 watts) |
| BACKGAUGE SYSTEM (X-AXIS): Min/Max Gauging | 0.024"/29.53" (6mm/750mm) |
| Electrics | 480V, 3-Phase Only |
| Frequency | 60Hz |
| Rated Current | 7,5A |
| Rated Power | 3,93 kW |
| Dimensions | (W x L x H): 88” / 175” / 73" |
| Weight | 6,950 lbs. |
